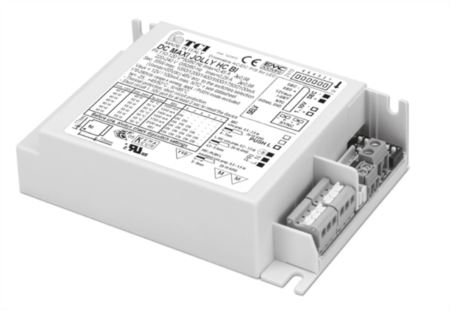

DC MAXI JOLLY HC BI
151415
€ 58,27
price VAT included
-
+
Features
Rated Voltage
110...127 V
220...240 V
Constant Current
Current
1050 mA
220-240 V = Output power
45 W
110-127 V =
40 W
Current
1200 mA
220-240 V = Output power
52 W
110-127 V =
40 W
Current
1400 mA
220-240 V = Output power
60 W
110-127 V =
40 W
Current
1600 mA
220-240 V = Output power
60 W
110-127 V =
40 W
Current
1750 mA
220-240 V = Output power
60 W
110-127 V =
40 W
Current
2100 mA
220-240 V = Output power
60 W
110-127 V =
40 W
Constant Voltage (LED STRIP)
Current
48 V
Dimming:
1-10V - 0-10V
PUSH (on the Mains)
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
WIDE RANGE INPUT VOLTAGE
12 V AUX. output
EXTERNAL NTC INPUT
Approvals:
ENEC
UL (class 2)
CCC
RCM
CE
EAC
UKCA
Plastic case:
Square
IP 20 (Independent Use)
ZHAGA AM2
Size:
110 x 30 x 76 mm
last update:
5/14/2024
Output voltage (min/max)
1050 mA
2...44
1200 mA
2...44
1400 mA
2...43
1600 mA
2...38
1750 mA
2...35
2100 mA
2...29
