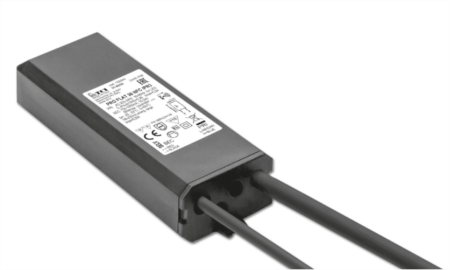

IPR3 NFC
152044
€ 57,95
price VAT included
-
+
Features
Rated Voltage
220...240 V
Constant Current
Current
NFC programming
Current
150 mA
220-240 V = Output power
8,1 W
Current
180 mA
220-240 V = Output power
9,7 W
Current
200 mA
220-240 V = Output power
10,8 W
Current
225 mA
220-240 V = Output power
11,8 W
Current
250 mA
220-240 V = Output power
13,5 W
Current
275 mA
220-240 V = Output power
14,5 W
Current
300 mA
220-240 V = Output power
16,2 W
Current
325 mA
220-240 V = Output power
17,28 W
Current
350 mA
220-240 V = Output power
18,9 W
Current
375 mA
220-240 V = Output power
20 W
Current
400 mA
220-240 V = Output power
21,6 W
Current
425 mA
220-240 V = Output power
22,6 W
Current
450 mA
220-240 V = Output power
24,3 W
Current
475 mA
220-240 V = Output power
25,3 W
Current
500 mA
220-240 V = Output power
27 W
Current
525 mA
220-240 V = Output power
28 W
Current
550 mA
220-240 V = Output power
29,7 W
Current
600 mA
220-240 V = Output power
32,4 W
Current
650 mA
220-240 V = Output power
35,1 W
Current
700 mA
220-240 V = Output power
38 W
Current
750 mA
220-240 V = Output power
38 W
Current
825 mA
220-240 V = Output power
38 W
Current
900 mA
220-240 V = Output power
38 W
Current
950 mA
220-240 V = Output power
38 W
Current
1000 mA
220-240 V = Output power
38 W
Current
1050 mA
220-240 V = Output power
38 W
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
Approvals:
ENEC
Plastic case:
Square
IP 20 (Independent Use)
IP 52
IP 54
IP 65
IP 66
IP 67
IP 68
Minimum cut-out hole diameter:
54 mm
Size:
127 x 28 x 47 mm
last update:
6/4/2024
