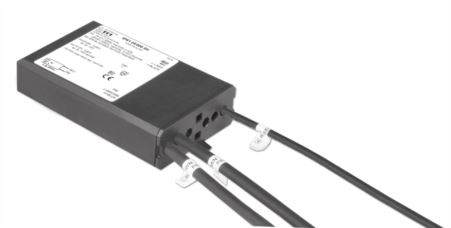

IPR1 70/1400 SV LO
152002/1400
€ 76,49
price VAT included
-
+
Features
Rated Voltage
110...127 V
220...240 V
Constant Current
Current
1400 mA
220-240 V = Output power
70 W
110-127 V =
40 W
Dimming:
NOT DIMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
WIDE RANGE INPUT VOLTAGE
4/5 kV DM/CM SURGE Input Protection
4/8 kV DM/CM SURGE Input Protection
6/6 kV DM/CM SURGE Input Protection
6/8 kV DM/CM SURGE Input Protection
8/8 kV DM/CM SURGE Input Protection
LOOPING on PRIMARY SIDE
Approvals:
ENEC
RCM
CE
EAC
UKCA
Plastic case:
IP 52
IP 54
IP 65
IP 66
IP 67
IP 68
Minimum cut-out hole diameter:
88 mm
Size:
143 x 31 x 80 mm
last update:
6/4/2024
Output voltage (min/max)
1400 mA
10...50
