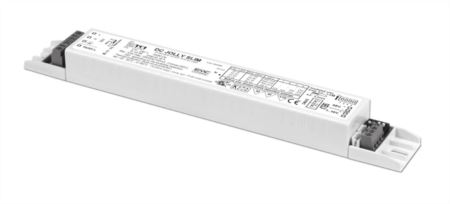

DC JOLLY SLIM

151680

151680
€ 47,76
price VAT included

-
+

Features

Constant Current
Current
250 mA
220-240 V = Output power
13 W
110-127 V =
13 W
Current
350 mA
220-240 V = Output power
18 W
110-127 V =
15 W
Current
400 mA
220-240 V = Output power
21 W
110-127 V =
15 W
Current
450 mA
220-240 V = Output power
23 W
110-127 V =
15 W
Current
500 mA
220-240 V = Output power
26 W
110-127 V =
15 W
Current
550 mA
220-240 V = Output power
28 W
110-127 V =
15 W
Current
600 mA
220-240 V = Output power
30 W
110-127 V =
15 W
Current
700 mA
220-240 V = Output power
32 W
110-127 V =
15 W
Dimming:
1-10V - 0-10V
PUSH (on the Mains)
SYNC/PWM INPUT
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
WIDE RANGE INPUT VOLTAGE
Approvals:
ENEC
UL (other than class 2)
CE
EAC
UKCA
Plastic case:
Slim
for Built-in
IP 67 with linear case 180066/390
Size:
237 x 21 x 30 mm
last update:
5/15/2024
Output voltage (min/max)
250 mA
2...53
350 mA
2...53
400 mA
2...52
450 mA
2...52
500 mA
2...52
550 mA
2...52
600 mA
2...51
700 mA
2...46
