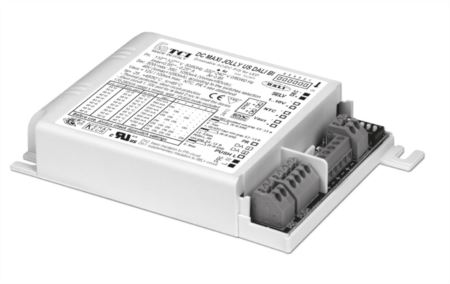

DC MAXI JOLLY SV DALI 40 BI

151507

151507
€ 67,93
price VAT included

-
+

Features

Rated Voltage
220...240 V
Constant Current
Current
350 mA
220-240 V = Output power
18,5 W
110-127 V =
18,5 W
Current
400 mA
220-240 V = Output power
21 W
110-127 V =
21 W
Current
450 mA
220-240 V = Output power
23,5 W
110-127 V =
23,5 W
Current
500 mA
220-240 V = Output power
26,5 W
110-127 V =
26,5 W
Current
550 mA
220-240 V = Output power
29 W
110-127 V =
29 W
Current
600 mA
220-240 V = Output power
31,5 W
110-127 V =
31,5 W
Current
650 mA
220-240 V = Output power
34,5 W
110-127 V =
34,5 W
Current
700 mA
220-240 V = Output power
37 W
110-127 V =
37 W
Current
750 mA
220-240 V = Output power
39,5 W
110-127 V =
39,5 W
Current
800 mA
220-240 V = Output power
40 W
110-127 V =
40 W
Current
850 mA
220-240 V = Output power
40 W
110-127 V =
40 W
Current
900 mA
220-240 V = Output power
40 W
110-127 V =
40 W
Current
950 mA
220-240 V = Output power
40 W
110-127 V =
40 W
Current
1000 mA
220-240 V = Output power
40 W
110-127 V =
40 W
Current
1050 mA
220-240 V = Output power
40 W
110-127 V =
40 W
Current
1100 mA
220-240 V = Output power
40 W
110-127 V =
40 W
Current
1150 mA
220-240 V = Output power
40 W
110-127 V =
40 W
Current
1200 mA
220-240 V = Output power
40 W
110-127 V =
40 W
Dimming:
DALI-2 (also DALI-1)
1-10V - 0-10V
PUSH (on the Mains)
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
WIDE RANGE INPUT VOLTAGE
4/5 kV DM/CM SURGE Input Protection
12 V AUX. output
EXTERNAL NTC INPUT
Approvals:
KEMAKEUR
ENEC
RCM
CE
EAC
UKCA
Plastic case:
Square
for Built-in
ZHAGA AM3
Size:
124 x 22 x 79 mm
last update:
5/14/2024
Output voltage (min/max)
350 mA
10...53
400 mA
10...53
450 mA
10...53
500 mA
10...53
550 mA
10...53
600 mA
10...53
650 mA
10...53
700 mA
10...53
750 mA
10...53
800 mA
10...50
850 mA
10...47
900 mA
10...44
950 mA
10...42
1000 mA
10...40
1050 mA
10...38
1100 mA
10...36
1150 mA
10...35
1200 mA
10...33
Product info
Country of production:
Italy
EAN:
8010703397569
HS code:
85044083
