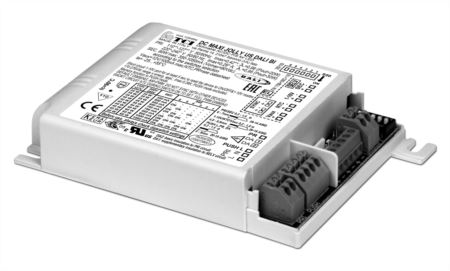

DC MAXI JOLLY US DALI BI
151464
€ 73,24
price VAT included
-
+
Features
Rated Voltage
110...127 V
220...240 V
Constant Current
Current
350 mA
220-240 V = Output power
25 W
110-127 V =
25 W
Current
500 mA
220-240 V = Output power
35 W
110-127 V =
35 W
Current
550 mA
220-240 V = Output power
39 W
110-127 V =
39 W
Current
650 mA
220-240 V = Output power
46 W
110-127 V =
40 W
Current
700 mA
220-240 V = Output power
50 W
110-127 V =
40 W
Current
750 mA
220-240 V = Output power
54 W
110-127 V =
40 W
Current
850 mA
220-240 V = Output power
60 W
110-127 V =
40 W
Current
900 mA
220-240 V = Output power
60 W
110-127 V =
40 W
Current
1000 mA
220-240 V = Output power
60 W
110-127 V =
40 W
Current
1050 mA
220-240 V = Output power
60 W
110-127 V =
40 W
Dimming:
DALI-2 (also DALI-1)
1-10V - 0-10V
PUSH (on the Mains)
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV >60/< />
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
WIDE RANGE INPUT VOLTAGE
4/5 kV DM/CM SURGE Input Protection
12 V AUX. output
EXTERNAL NTC INPUT
Suitable for AUTOMATIC WIRING MACHINE
Approvals:
KEMAKEUR
ENEC
UL (other than class 2)
CCC
RCM
CE
EAC
UKCA
Plastic case:
Square
for Built-in
ZHAGA AM3
Size:
124 x 22 x 79 mm
last update:
5/14/2024
Output voltage (min/max)
350 mA
2...74
500 mA
2...72
550 mA
2...72
650 mA
2...72
700 mA
2...72
750 mA
2...72
850 mA
2...70
900 mA
2...66
1000 mA
2...60
1050 mA
2...57
Product info
Country of production:
Italy
EAN:
8010703381360
HS code:
85044083
