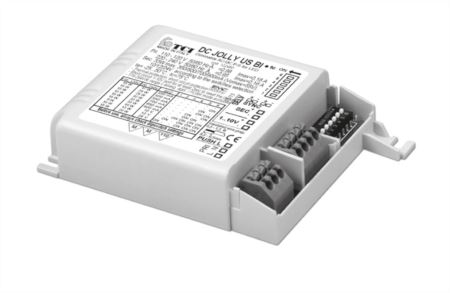

DC JOLLY US BI
151450
€ 36,91
price VAT included
-
+
Features
Rated Voltage
110...127 V
220...240 V
Constant Current
Current
250 mA
220-240 V = Output power
13 W
110-127 V =
13 W
Current
300 mA
220-240 V = Output power
16 W
110-127 V =
15 W
Current
350 mA
220-240 V = Output power
18 W
110-127 V =
15 W
Current
400 mA
220-240 V = Output power
21 W
110-127 V =
15 W
Current
450 mA
220-240 V = Output power
23 W
110-127 V =
15 W
Current
500 mA
220-240 V = Output power
25 W
110-127 V =
15 W
Current
550 mA
220-240 V = Output power
27 W
110-127 V =
15 W
Current
600 mA
220-240 V = Output power
30 W
110-127 V =
15 W
Current
650 mA
220-240 V = Output power
32 W
110-127 V =
15 W
Current
700 mA
220-240 V = Output power
32 W
110-127 V =
15 W
Current
750 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
800 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
850 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
900 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Dimming:
1-10V - 0-10V
PUSH (on the Mains)
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
WIDE RANGE INPUT VOLTAGE
Approvals:
KEMAKEUR
ENEC
UL (class 2)
CCC
RCM
CE
EAC
UKCA
Plastic case:
Square
for Built-in
ZHAGA AS1
Size:
90 x 21 x 67 mm
last update:
5/14/2024
Output voltage (min/max)
250 mA
15...53
300 mA
15...53
350 mA
10...53
400 mA
10...53
450 mA
5...52
500 mA
2...50
550 mA
2...50
600 mA
2...50
650 mA
2...49
700 mA
2...46
750 mA
2...27
800 mA
2...25
850 mA
2...24
900 mA
2...22
Product info
Country of production:
Italy
EAN:
8010703383326
HS code:
85044083
