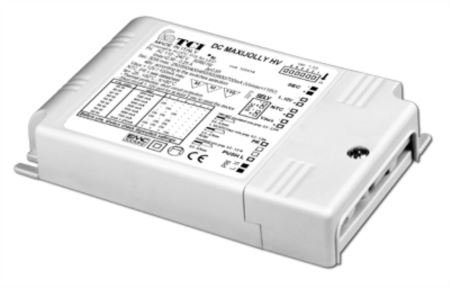

DC MAXI JOLLY HV
151414
![151414](/images/6128/2669/450x450/nocrop/enlarge/122414_DC_MAXI_JOLLY_HV.jpg)
€ 83,27
price VAT included
-
+
Features
Rated Voltage
110...127 V
220...240 V
Constant Current
Current
250 mA
220-240 V = Output power
28 W
110-127 V =
28 W
Current
300 mA
220-240 V = Output power
34 W
110-127 V =
34 W
Current
350 mA
220-240 V = Output power
39 W
110-127 V =
39 W
Current
400 mA
220-240 V = Output power
45 W
110-127 V =
45 W
Current
450 mA
220-240 V = Output power
50 W
110-127 V =
50 W
Current
500 mA
220-240 V = Output power
56 W
110-127 V =
56 W
Current
550 mA
220-240 V = Output power
60 W
110-127 V =
60 W
Current
600 mA
220-240 V = Output power
60 W
110-127 V =
60 W
Current
650 mA
220-240 V = Output power
60 W
110-127 V =
60 W
Current
700 mA
220-240 V = Output power
60 W
110-127 V =
60 W
Dimming:
1-10V - 0-10V
PUSH (on the Mains)
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV >60/< />
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
WIDE RANGE INPUT VOLTAGE
4/5 kV DM/CM SURGE Input Protection
12 V AUX. output
EXTERNAL NTC INPUT
Approvals:
KEMAKEUR
ENEC
RCM
CE
EAC
UKCA
Plastic case:
Square
IP 20 (Independent Use)
ZHAGA AM3
Minimum cut-out hole diameter:
84 mm
Size:
124 x 22 x 80 mm
last update:
5/14/2024
Output voltage (min/max)
250 mA
20...112
300 mA
20...112
350 mA
20...112
400 mA
20...112
450 mA
20...112
500 mA
2...112
550 mA
2...110
600 mA
2...100
650 mA
2...92
700 mA
2...86
