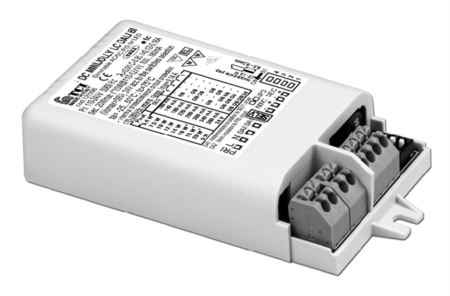

DC MINI JOLLY LC DALI BI

151396

151396
€ 40,52
price VAT included

-
+

Features

Rated Voltage
110...127 V
220...240 V
Constant Current
Current
100 mA
220-240 V = Output power
5 W
110-127 V =
5 W
Current
140 mA
220-240 V = Output power
7 W
110-127 V =
7 W
Current
180 mA
220-240 V = Output power
9 W
110-127 V =
9 W
Current
220 mA
220-240 V = Output power
11 W
110-127 V =
11 W
Current
260 mA
220-240 V = Output power
13 W
110-127 V =
13 W
Current
300 mA
220-240 V = Output power
15 W
110-127 V =
15 W
Current
340 mA
220-240 V = Output power
17 W
110-127 V =
15 W
Current
380 mA
220-240 V = Output power
19 W
110-127 V =
15 W
Constant Voltage (LED STRIP)
Current
24 V
Dimming:
DALI-2 (also DALI-1)
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
EXTERNAL NTC INPUT
Approvals:
ENEC
CE
EAC
UKCA
Plastic case:
Square
Size:
108 x 22 x 52 mm
last update:
5/14/2024
Output voltage (min/max)
100 mA
15...50
140 mA
10...50
180 mA
5...50
220 mA
5...50
260 mA
5...50
300 mA
3...50
340 mA
3...50
380 mA
3...50
