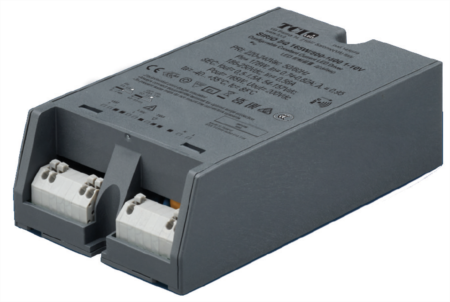

SIRIO SQ 165W/500-1500 1-10V
145079
€ 72,75
price VAT included
-
+
Features
Rated Voltage
220...240 V
Constant Current
Current
500 mA
220-240 V = Output power
78,5 W
Current
550 mA
220-240 V = Output power
86,35 W
Current
600 mA
220-240 V = Output power
94,2 W
Current
650 mA
220-240 V = Output power
102 W
Current
700 mA
220-240 V = Output power
109,9 W
Current
750 mA
220-240 V = Output power
117,7 W
Current
800 mA
220-240 V = Output power
125,6 W
Current
850 mA
220-240 V = Output power
133,4 W
Current
900 mA
220-240 V = Output power
141,3 W
Current
950 mA
220-240 V = Output power
149,15 W
Current
1000 mA
220-240 V = Output power
157 W
Current
1050 mA
220-240 V = Output power
165 W
Current
1100 mA
220-240 V = Output power
165 W
Current
1150 mA
220-240 V = Output power
165 W
Current
1200 mA
220-240 V = Output power
165 W
Current
1250 mA
220-240 V = Output power
165 W
Current
1300 mA
220-240 V = Output power
165 W
Current
1350 mA
220-240 V = Output power
165 W
Current
1400 mA
220-240 V = Output power
165 W
Dimming:
1-10V only
MIDNIGHT Function
CLO Function
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
NOT SELV (>120V)
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
4/5 kV DM/CM SURGE Input Protection
4/8 kV DM/CM SURGE Input Protection
6/6 kV DM/CM SURGE Input Protection
6/8 kV DM/CM SURGE Input Protection
6/10 kV DM/CM SURGE Input Protection
Approvals:
ENEC
CCC
RCM
CE
UKCA
Plastic case:
Square
for Built-in
Size:
170 x 40 x 100 mm
last update:
5/21/2024
