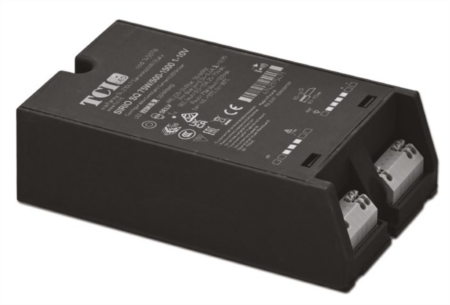

SIRIO SQ 75W/500-1500 1-10V
145076
€ 54,60
price VAT included
-
+
Features
Rated Voltage
220...240 V
Constant Current
Current
500 mA
220-240 V = Output power
37,5 W
Current
550 mA
220-240 V = Output power
41,25 W
Current
600 mA
220-240 V = Output power
45 W
Current
650 mA
220-240 V = Output power
48,7 W
Current
700 mA
220-240 V = Output power
52,5 W
Current
750 mA
220-240 V = Output power
56,2 W
Current
800 mA
220-240 V = Output power
60 W
Current
850 mA
220-240 V = Output power
63,7 W
Current
900 mA
220-240 V = Output power
67,5 W
Current
950 mA
220-240 V = Output power
71,2 W
Current
1000 mA
220-240 V = Output power
75 W
Current
1050 mA
220-240 V = Output power
75 W
Current
1100 mA
220-240 V = Output power
75 W
Current
1150 mA
220-240 V = Output power
75 W
Current
1200 mA
220-240 V = Output power
75 W
Current
1250 mA
220-240 V = Output power
75 W
Current
1300 mA
220-240 V = Output power
75 W
Current
1350 mA
220-240 V = Output power
75 W
Current
1400 mA
220-240 V = Output power
75 W
Dimming:
1-10V only
MIDNIGHT Function
CLO Function
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV >60/< />
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
4/5 kV DM/CM SURGE Input Protection
4/8 kV DM/CM SURGE Input Protection
6/6 kV DM/CM SURGE Input Protection
6/8 kV DM/CM SURGE Input Protection
6/10 kV DM/CM SURGE Input Protection
Approvals:
ENEC
CCC
RCM
CE
UKCA
Plastic case:
Square
for Built-in
Size:
133 x 39 x 75 mm
last update:
5/21/2024
