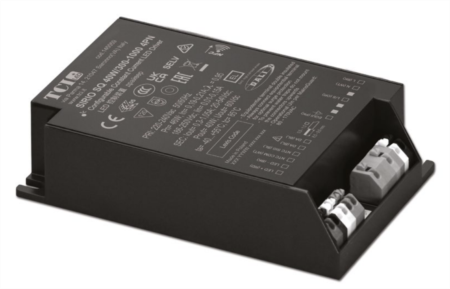

SIRIO SQ 165W/300-1000 4PN
145063
€ 79,91
price VAT included
-
+
Features
Rated Voltage
220...240 V
Constant Current
Current
300 mA
220-240 V = Output power
48 W
Current
350 mA
220-240 V = Output power
82,25 W
Current
400 mA
220-240 V = Output power
94 W
Current
450 mA
220-240 V = Output power
105,7 W
Current
500 mA
220-240 V = Output power
117,5 W
Current
550 mA
220-240 V = Output power
129,25 W
Current
600 mA
220-240 V = Output power
141 W
Current
650 mA
220-240 V = Output power
152,75 W
Current
700 mA
220-240 V = Output power
164,5 W
Current
750 mA
220-240 V = Output power
165 W
Current
800 mA
220-240 V = Output power
165 W
Current
850 mA
220-240 V = Output power
165 W
Current
900 mA
220-240 V = Output power
165 W
Current
950 mA
220-240 V = Output power
165 W
Current
1000 mA
220-240 V = Output power
165 W
Current
1050 mA
220-240 V = Output power
165 W
Dimming:
DALI-2 (also DALI-1)
MIDNIGHT Function
BILEVEL Function
CLO Function
DC EMERGENCY Function
FULL PROGRAMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
NOT SELV (>120V)
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
4/5 kV DM/CM SURGE Input Protection
4/8 kV DM/CM SURGE Input Protection
6/6 kV DM/CM SURGE Input Protection
6/8 kV DM/CM SURGE Input Protection
6/10 kV DM/CM SURGE Input Protection
Approvals:
ENEC
CCC
RCM
CE
UKCA
Plastic case:
Square
for Built-in
Size:
133 x 39 x 75 mm
last update:
5/21/2024
