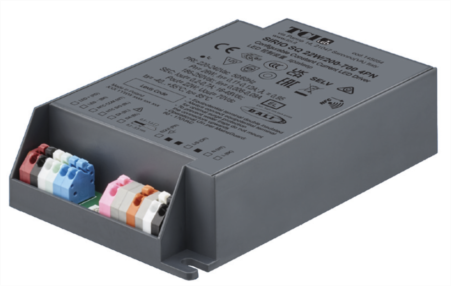

SIRIO SQ 75W/300-1000 AD

145047

145047
€ 77,93
price VAT included

-
+

Features

Rated Voltage
220...240 V
Constant Current
Current
300 mA
220-240 V = Output power
32,4 W
Current
350 mA
220-240 V = Output power
37,8 W
Current
400 mA
220-240 V = Output power
43,2 W
Current
450 mA
220-240 V = Output power
48,6 W
Current
500 mA
220-240 V = Output power
54 W
Current
550 mA
220-240 V = Output power
59,4 W
Current
600 mA
220-240 V = Output power
64,8 W
Current
650 mA
220-240 V = Output power
70,2 W
Current
700 mA
220-240 V = Output power
75,6 W
Current
750 mA
220-240 V = Output power
75 W
Current
800 mA
220-240 V = Output power
75 W
Current
850 mA
220-240 V = Output power
75 W
Current
900 mA
220-240 V = Output power
75 W
Current
950 mA
220-240 V = Output power
75 W
Current
1000 mA
220-240 V = Output power
75 W
Current
1050 mA
220-240 V = Output power
75 W
Dimming:
D4i (Active DALI)
MIDNIGHT Function
CLO Function
DC EMERGENCY Function
FULL PROGRAMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
NOT SELV (>120V)
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
4/5 kV DM/CM SURGE Input Protection
4/8 kV DM/CM SURGE Input Protection
6/6 kV DM/CM SURGE Input Protection
6/8 kV DM/CM SURGE Input Protection
6/10 kV DM/CM SURGE Input Protection
Approvals:
ENEC
CCC
RCM
CE
UKCA
Plastic case:
Square
for Built-in
Size:
150 x 40 x 90 mm
last update:
5/21/2024
