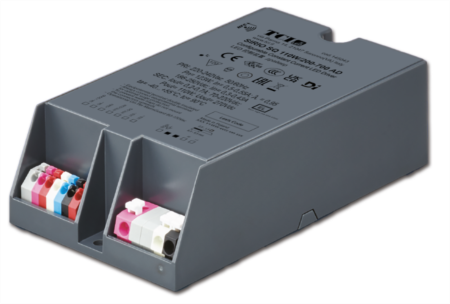

SIRIO SQ 22W/200-700 AD
145040
€ 63,44
price VAT included
-
+
Features
Rated Voltage
220...240 V
Constant Current
Current
NFC programming
Current
AOC via cables (ADJ. OUT. CURRENT)
Current
200 mA
220-240 V = Output power
9,6 W
Current
250 mA
220-240 V = Output power
12 W
Current
300 mA
220-240 V = Output power
14,4 W
Current
350 mA
220-240 V = Output power
16,8 W
Current
400 mA
220-240 V = Output power
19,2 W
Current
450 mA
220-240 V = Output power
21,6 W
Current
500 mA
220-240 V = Output power
22 W
Current
550 mA
220-240 V = Output power
22 W
Current
600 mA
220-240 V = Output power
22 W
Current
650 mA
220-240 V = Output power
22 W
Current
700 mA
220-240 V = Output power
22 W
Dimming:
D4i (Active DALI)
MIDNIGHT Function
CLO Function
DC EMERGENCY Function
FULL PROGRAMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV >60/< />
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
4/5 kV DM/CM SURGE Input Protection
4/8 kV DM/CM SURGE Input Protection
6/6 kV DM/CM SURGE Input Protection
6/8 kV DM/CM SURGE Input Protection
Approvals:
ENEC
CCC
RCM
CE
UKCA
Plastic case:
Square
for Built-in
Size:
133 x 40 x 77 mm
last update:
5/21/2024
