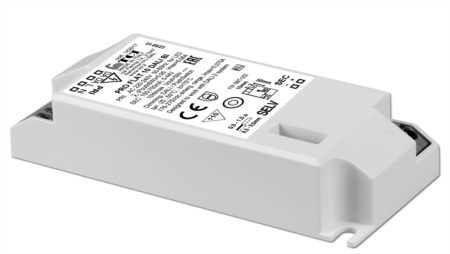

PRO FLAT 10 DALI BI
142017
€ 36,60
price VAT included
-
+
Features
Rated Voltage
220...240 V
Constant Current
Current
150 mA
220-240 V = Output power
6,6 W
Current
160 mA
220-240 V = Output power
7,04 W
Current
180 mA
220-240 V = Output power
7,92 W
Current
200 mA
220-240 V = Output power
8,8 W
Current
220 mA
220-240 V = Output power
9,68 W
Current
240 mA
220-240 V = Output power
10 W
Current
260 mA
220-240 V = Output power
10 W
Current
280 mA
220-240 V = Output power
10 W
Current
300 mA
220-240 V = Output power
10 W
Current
320 mA
220-240 V = Output power
10 W
Current
340 mA
220-240 V = Output power
10 W
Current
360 mA
220-240 V = Output power
10 W
Current
380 mA
220-240 V = Output power
10 W
Current
400 mA
220-240 V = Output power
10 W
Current
420 mA
220-240 V = Output power
10 W
Current
440 mA
220-240 V = Output power
10 W
Current
460 mA
220-240 V = Output power
10 W
Current
480 mA
220-240 V = Output power
10 W
Current
500 mA
220-240 V = Output power
10 W
Current
520 mA
220-240 V = Output power
10 W
Current
540 mA
220-240 V = Output power
10 W
Current
560 mA
220-240 V = Output power
10 W
Current
580 mA
220-240 V = Output power
10 W
Current
600 mA
220-240 V = Output power
10 W
Current
650 mA
220-240 V = Output power
10 W
Current
700 mA
220-240 V = Output power
10 W
Dimming:
DALI-2 (also DALI-1)
FULL PROGRAMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
Approvals:
ENEC
CE
UKCA
Plastic case:
Square
IP 20 (Independent Use)
Minimum cut-out hole diameter:
50 mm
Size:
97 x 22 x 42 mm
last update:
5/14/2024
