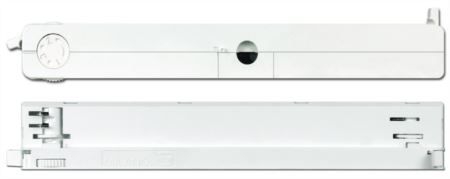

MILANOinTRACK 40/675-1050 DALI
127888
€ 100,04
price VAT included
-
+
Features
Rated Voltage
220...240 V
Constant Current
Current
675 mA
220-240 V = Output power
27 W
Current
700 mA
220-240 V = Output power
28 W
Current
725 mA
220-240 V = Output power
29 W
Current
750 mA
220-240 V = Output power
30 W
Current
775 mA
220-240 V = Output power
31 W
Current
800 mA
220-240 V = Output power
32 W
Current
825 mA
220-240 V = Output power
33 W
Current
850 mA
220-240 V = Output power
34 W
Current
875 mA
220-240 V = Output power
35 W
Current
900 mA
220-240 V = Output power
36 W
Current
925 mA
220-240 V = Output power
37 W
Current
950 mA
220-240 V = Output power
38 W
Current
975 mA
220-240 V = Output power
39 W
Current
1000 mA
220-240 V = Output power
40 W
Current
1025 mA
220-240 V = Output power
40 W
Current
1050 mA
220-240 V = Output power
40 W
Dimming:
DALI-2 (also DALI-1)
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
Approvals:
ENEC
RCM
CE
EAC
UKCA
Plastic case:
TRACK ADAPTOR MAINS VOLTAGE
Size:
260 x 42 x 32 mm
last update:
3/18/2020
Output voltage (min/max)
675 mA
5...42
700 mA
5...42
725 mA
5...42
750 mA
5...42
775 mA
5...42
800 mA
5...42
825 mA
5...40
850 mA
5...40
875 mA
5...40
900 mA
5...40
925 mA
5...40
950 mA
5...40
975 mA
5...40
1000 mA
5...40
1025 mA
5...39
1050 mA
5...38
