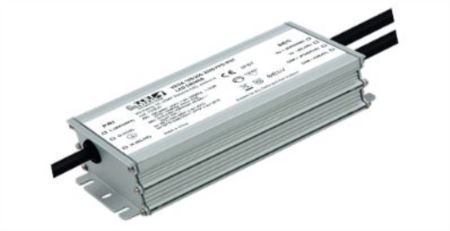

VEGA 320/550-1100 FPD IP67
127845
€ 165,62
price VAT included
-
+
Features
Rated Voltage
100 V
110...127 V
220...240 V
277 V
Constant Current
Current
550 mA
220-240 V = Output power
251,3 W
Current
575 mA
220-240 V = Output power
260,4 W
Current
600 mA
220-240 V = Output power
274,2 W
Current
625 mA
220-240 V = Output power
283,3 W
Current
650 mA
220-240 V = Output power
297 W
Current
700 mA
220-240 V = Output power
319,9 W
Current
750 mA
220-240 V = Output power
320 W
Current
800 mA
220-240 V = Output power
320 W
Current
850 mA
220-240 V = Output power
320 W
Current
900 mA
220-240 V = Output power
320 W
Current
950 mA
220-240 V = Output power
320 W
Current
1025 mA
220-240 V = Output power
320 W
Current
1050 mA
220-240 V = Output power
320 W
Dimming:
1-10V - 0-10V
MIDNIGHT Function
CLO Function
FULL PROGRAMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
NOT SELV (>120V)
6/10 kV DM/CM SURGE Input Protection
Approvals:
ENEC
UL (other than class 2)
RCM
CE
EAC
UKCA
Plastic case:
IP 20 (Independent Use)
IP 52
IP 54
IP 65
IP 66
IP 67
Size:
231 x 42 x 98 mm
last update:
5/21/2024
