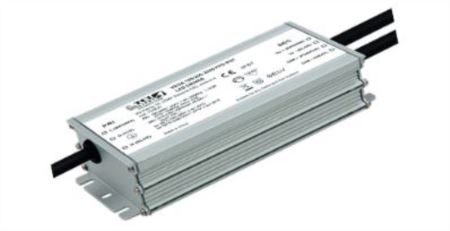

VEGA 240/530-1050 FPD IP67
127844
€ 127,26
price VAT included
-
+
Features
Rated Voltage
100 V
110...127 V
220...240 V
277 V
Constant Current
Current
530 mA
220-240 V = Output power
181,7 W
Current
550 mA
220-240 V = Output power
188,6 W
Current
600 mA
220-240 V = Output power
205,8 W
Current
650 mA
220-240 V = Output power
222,9 W
Current
700 mA
220-240 V = Output power
240 W
Current
750 mA
220-240 V = Output power
240 W
Current
800 mA
220-240 V = Output power
240 W
Current
850 mA
220-240 V = Output power
240 W
Current
925 mA
220-240 V = Output power
240 W
Current
950 mA
220-240 V = Output power
240 W
Current
1000 mA
220-240 V = Output power
240 W
Current
1050 mA
220-240 V = Output power
240 W
Dimming:
1-10V - 0-10V
MIDNIGHT Function
CLO Function
FULL PROGRAMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
NOT SELV (>120V)
6/10 kV DM/CM SURGE Input Protection
PROGRAMMING TOOL
Approvals:
ENEC
UL (other than class 2)
RCM
CE
EAC
UKCA
Plastic case:
IP 20 (Independent Use)
IP 52
IP 54
IP 65
IP 66
IP 67
Size:
208 x 40 x 68 mm
last update:
5/21/2024
