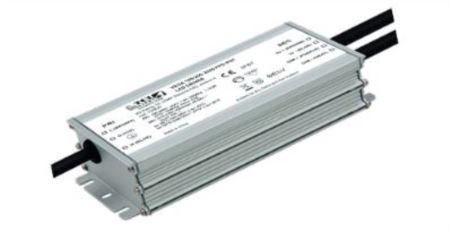

VEGA 75/530-1050 FPD IP67
127840
€ 78,08
price VAT included
-
+
Features
Rated Voltage
100 V
110...127 V
220...240 V
277 V
Constant Current
Current
530 mA
220-240 V = Output power
57,2 W
Current
540 mA
220-240 V = Output power
58,3 W
Current
560 mA
220-240 V = Output power
60,4 W
Current
580 mA
220-240 V = Output power
62,6 W
Current
610 mA
220-240 V = Output power
65,8 W
Current
640 mA
220-240 V = Output power
69,1 W
Current
670 mA
220-240 V = Output power
72,3 W
Current
700 mA
220-240 V = Output power
75 W
Current
730 mA
220-240 V = Output power
75 W
Current
800 mA
220-240 V = Output power
75 W
Current
830 mA
220-240 V = Output power
75 W
Current
900 mA
220-240 V = Output power
75 W
Current
950 mA
220-240 V = Output power
75 W
Current
1000 mA
220-240 V = Output power
75 W
Current
1050 mA
220-240 V = Output power
75 W
Dimming:
1-10V - 0-10V
MIDNIGHT Function
CLO Function
FULL PROGRAMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV >60/< />
6/10 kV DM/CM SURGE Input Protection
PROGRAMMING TOOL
Approvals:
ENEC
UL (other than class 2)
RCM
CE
EAC
UKCA
Plastic case:
IP 20 (Independent Use)
IP 52
IP 54
IP 65
IP 66
IP 67
Size:
128 x 37 x 68 mm
last update:
5/21/2024
