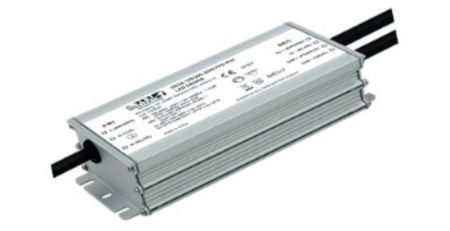

VEGA 240/2850-5710 FPD IP67
127833
€ 127,26
price VAT included
-
+
Features
Rated Voltage
100 V
110...127 V
220...240 V
277 V
Constant Current
Current
2850 mA
220-240 V = Output power
176,7 W
Current
3100 mA
220-240 V = Output power
192,2 W
Current
3300 mA
220-240 V = Output power
204,6 W
Current
3600 mA
220-240 V = Output power
223,2 W
Current
3800 mA
220-240 V = Output power
235,6 W
Current
4000 mA
220-240 V = Output power
240 W
Current
4200 mA
220-240 V = Output power
240 W
Current
4500 mA
220-240 V = Output power
240 W
Current
4800 mA
220-240 V = Output power
240 W
Current
5000 mA
220-240 V = Output power
240 W
Current
5200 mA
220-240 V = Output power
240 W
Current
5500 mA
220-240 V = Output power
240 W
Current
5710 mA
220-240 V = Output power
240 W
Dimming:
1-10V - 0-10V
MIDNIGHT Function
CLO Function
FULL PROGRAMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV >60/< />
WIDE RANGE INPUT VOLTAGE
6/10 kV DM/CM SURGE Input Protection
PROGRAMMING TOOL
Approvals:
ENEC
UL (other than class 2)
RCM
CE
EAC
UKCA
Plastic case:
IP 20 (Independent Use)
IP 52
IP 54
IP 65
IP 66
IP 67
Size:
208 x 40 x 68 mm
last update:
5/21/2024
