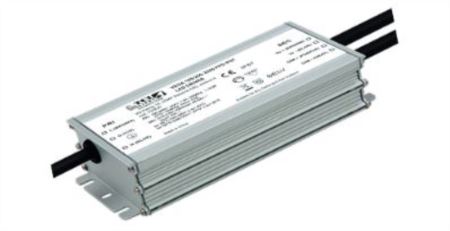

VEGA 150/1800-3600 FPD IP67
127831
€ 100,30
price VAT included
-
+
Features
Rated Voltage
100 V
110...127 V
220...240 V
277 V
Constant Current
Current
1800 mA
220-240 V = Output power
111,6 W
Current
1900 mA
220-240 V = Output power
117,8 W
Current
2000 mA
220-240 V = Output power
124 W
Current
2200 mA
220-240 V = Output power
136,4 W
Current
2800 mA
220-240 V = Output power
150 W
Current
3100 mA
220-240 V = Output power
150 W
Current
3600 mA
220-240 V = Output power
150 W
Dimming:
1-10V - 0-10V
MIDNIGHT Function
CLO Function
FULL PROGRAMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV >60/< />
WIDE RANGE INPUT VOLTAGE
6/10 kV DM/CM SURGE Input Protection
PROGRAMMING TOOL
Approvals:
ENEC
UL (other than class 2)
RCM
CE
EAC
UKCA
Plastic case:
IP 20 (Independent Use)
IP 52
IP 54
IP 65
IP 66
IP 67
Size:
173 x 37 x 68 mm
last update:
5/21/2024
