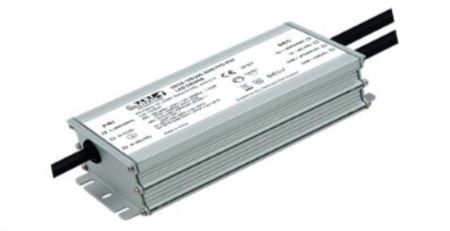

VEGA 105/1250-2500 FPD IP67
127830
€ 87,85
price VAT included
-
+
Features
Rated Voltage
110...127 V
220...240 V
277 V
Constant Current
Current
1250 mA
220-240 V = Output power
77,5 W
Current
1350 mA
220-240 V = Output power
83,7 W
Current
1450 mA
220-240 V = Output power
89,9 W
Current
1600 mA
220-240 V = Output power
99,2 W
Current
1750 mA
220-240 V = Output power
105 W
Current
2000 mA
220-240 V = Output power
105 W
Current
2200 mA
220-240 V = Output power
105 W
Current
2500 mA
220-240 V = Output power
105 W
Dimming:
1-10V - 0-10V
MIDNIGHT Function
CLO Function
FULL PROGRAMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV >60/< />
WIDE RANGE INPUT VOLTAGE
6/10 kV DM/CM SURGE Input Protection
PROGRAMMING TOOL
Approvals:
ENEC
UL (other than class 2)
RCM
CE
EAC
UKCA
Plastic case:
IP 20 (Independent Use)
IP 52
IP 54
IP 65
IP 66
IP 67
Size:
153 x 37 x 68 mm
last update:
5/21/2024
