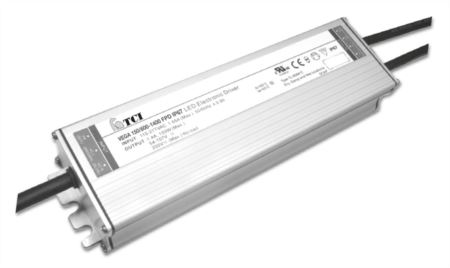

VEGA 100/600-1400 FPD IP67
127805
€ 58,56
price VAT included
-
+
Features
Rated Voltage
110...127 V
220...240 V
277 V
Constant Current
Current
AOC via cables (ADJ. OUT. CURRENT)
Current
600 mA
220-240 V = Output power
85 W
110-127 V =
85 W
Current
610 mA
220-240 V = Output power
87,2 W
110-127 V =
87,2 W
Current
625 mA
220-240 V = Output power
89,3 W
110-127 V =
89,3 W
Current
640 mA
220-240 V = Output power
91,5 W
110-127 V =
91,5 W
Current
650 mA
220-240 V = Output power
92 W
110-127 V =
92 W
Current
670 mA
220-240 V = Output power
95,8 W
110-127 V =
95,8 W
Current
675 mA
220-240 V = Output power
96,5 W
110-127 V =
96,5 W
Current
700 mA
220-240 V = Output power
100 W
110-127 V =
100 W
Current
725 mA
220-240 V = Output power
100 W
110-127 V =
100 W
Current
730 mA
220-240 V = Output power
100 W
110-127 V =
100 W
Current
750 mA
220-240 V = Output power
100 W
110-127 V =
100 W
Current
775 mA
220-240 V = Output power
100 W
110-127 V =
100 W
Current
800 mA
220-240 V = Output power
100 W
110-127 V =
100 W
Current
830 mA
220-240 V = Output power
100 W
110-127 V =
100 W
Current
850 mA
220-240 V = Output power
100 W
110-127 V =
100 W
Current
900 mA
220-240 V = Output power
100 W
110-127 V =
100 W
Current
930 mA
220-240 V = Output power
100 W
110-127 V =
100 W
Current
950 mA
220-240 V = Output power
100 W
110-127 V =
100 W
Current
1000 mA
220-240 V = Output power
100 W
110-127 V =
100 W
Current
1050 mA
220-240 V = Output power
100 W
110-127 V =
100 W
Current
1100 mA
220-240 V = Output power
100 W
110-127 V =
100 W
Current
1150 mA
220-240 V = Output power
100 W
110-127 V =
100 W
Current
1200 mA
220-240 V = Output power
100 W
110-127 V =
100 W
Current
1250 mA
220-240 V = Output power
100 W
110-127 V =
100 W
Current
1300 mA
220-240 V = Output power
100 W
110-127 V =
100 W
Current
1330 mA
220-240 V = Output power
100 W
110-127 V =
100 W
Current
1350 mA
220-240 V = Output power
100 W
110-127 V =
100 W
Current
1400 mA
220-240 V = Output power
100 W
110-127 V =
100 W
Dimming:
1-10V only
MIDNIGHT Function
FULL PROGRAMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
NOT SELV (>120V)
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
WIDE RANGE INPUT VOLTAGE
4/5 kV DM/CM SURGE Input Protection
6/6 kV DM/CM SURGE Input Protection
12 V AUX. output
EXTERNAL NTC INPUT
Approvals:
UL (other than class 2)
CE
EAC
UKCA
Plastic case:
IP 52
IP 54
IP 65
IP 66
IP 67
Size:
174 x 37 x 68 mm
last update:
2/2/2021
