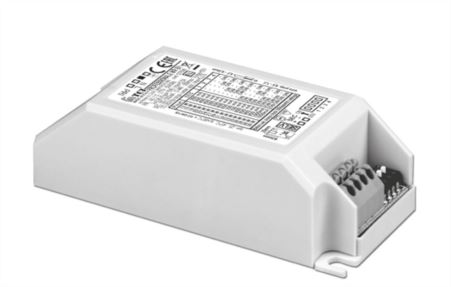

PROFESSIONALE 1-10V WR BI
127702
€ 47,14
price VAT included
-
+
Features
Rated Voltage
100 V
110...127 V
220...240 V
277 V
Constant Current
Current
300 mA
220-240 V = Output power
13 W
110-127 V =
13 W
100 V =
13 W
Current
350 mA
220-240 V = Output power
15 W
110-127 V =
15 W
100 V =
15 W
Current
400 mA
220-240 V = Output power
18 W
110-127 V =
18 W
100 V =
18 W
Current
450 mA
220-240 V = Output power
20 W
110-127 V =
20 W
100 V =
20 W
Current
500 mA
220-240 V = Output power
22 W
110-127 V =
22 W
100 V =
22 W
Current
550 mA
220-240 V = Output power
24 W
110-127 V =
24 W
100 V =
24 W
Current
600 mA
220-240 V = Output power
27 W
110-127 V =
27 W
100 V =
27 W
Current
650 mA
220-240 V = Output power
29 W
110-127 V =
29 W
100 V =
29 W
Current
700 mA
220-240 V = Output power
31 W
110-127 V =
30 W
100 V =
30 W
Current
750 mA
220-240 V = Output power
32 W
110-127 V =
30 W
100 V =
30 W
Current
800 mA
220-240 V = Output power
33 W
110-127 V =
30 W
100 V =
30 W
Current
850 mA
220-240 V = Output power
35 W
110-127 V =
30 W
100 V =
30 W
Current
900 mA
220-240 V = Output power
38 W
110-127 V =
30 W
100 V =
30 W
Current
950 mA
220-240 V = Output power
38 W
110-127 V =
30 W
100 V =
30 W
Current
1000 mA
220-240 V = Output power
38 W
110-127 V =
30 W
100 V =
30 W
Current
1050 mA
220-240 V = Output power
38 W
110-127 V =
30 W
100 V =
30 W
Dimming:
1-10V - 0-10V
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
WIDE RANGE INPUT VOLTAGE
Approvals:
ENEC
UL (class 2)
RCM
CE
EAC
UKCA
Plastic case:
for Built-in
Size:
98 x 30 x 42 mm
last update:
6/5/2024
Output voltage (min/max)
300 mA
2...45
350 mA
2...45
400 mA
2...45
450 mA
2...45
500 mA
2...45
550 mA
2...45
600 mA
2...45
650 mA
2...45
700 mA
2...45
750 mA
2...44
800 mA
2...42
850 mA
2...42
900 mA
2...42
950 mA
2...40
1000 mA
2...38
1050 mA
2...36
