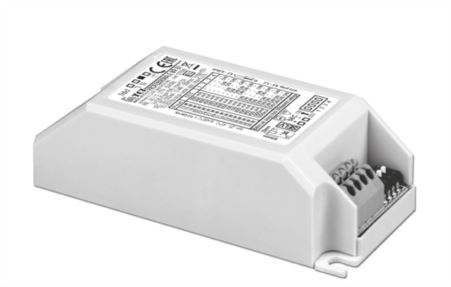

PROFESSIONALE WR BI
127696
€ 29,54
price VAT included
-
+
Features
Rated Voltage
100 V
110...127 V
220...240 V
277 V
Constant Current
Current
300 mA
220-240 V = Output power
13 W
110-127 V =
13 W
100 V =
13 W
Current
350 mA
220-240 V = Output power
15 W
110-127 V =
15 W
100 V =
15 W
Current
400 mA
220-240 V = Output power
18 W
110-127 V =
18 W
100 V =
18 W
Current
450 mA
220-240 V = Output power
20 W
110-127 V =
20 W
100 V =
20 W
Current
500 mA
220-240 V = Output power
22 W
110-127 V =
22 W
100 V =
22 W
Current
550 mA
220-240 V = Output power
24 W
110-127 V =
24 W
100 V =
24 W
Current
600 mA
220-240 V = Output power
27 W
110-127 V =
27 W
100 V =
27 W
Current
650 mA
220-240 V = Output power
29 W
110-127 V =
29 W
100 V =
29 W
Current
700 mA
220-240 V = Output power
31 W
110-127 V =
30 W
100 V =
30 W
Current
750 mA
220-240 V = Output power
32 W
110-127 V =
30 W
100 V =
30 W
Current
800 mA
220-240 V = Output power
33 W
110-127 V =
30 W
100 V =
30 W
Current
850 mA
220-240 V = Output power
35 W
110-127 V =
30 W
100 V =
30 W
Current
900 mA
220-240 V = Output power
38 W
110-127 V =
30 W
100 V =
30 W
Current
950 mA
220-240 V = Output power
38 W
110-127 V =
30 W
100 V =
30 W
Current
1000 mA
220-240 V = Output power
38 W
110-127 V =
30 W
100 V =
30 W
Current
1050 mA
220-240 V = Output power
38 W
110-127 V =
30 W
100 V =
30 W
Dimming:
NOT DIMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
WIDE RANGE INPUT VOLTAGE
Approvals:
KEMAKEUR
ENEC
UL (class 2)
RCM
CE
EAC
UKCA
Plastic case:
for Built-in
Size:
97 x 30 x 42 mm
last update:
6/5/2024
Output voltage (min/max)
300 mA
10...45
350 mA
10...45
400 mA
10...45
450 mA
10...45
500 mA
10...45
550 mA
10...45
600 mA
10...45
650 mA
10...45
700 mA
10...45
750 mA
10...44
800 mA
10...42
850 mA
10...42
900 mA
10...42
950 mA
10...40
1000 mA
10...38
1050 mA
10...36,2
