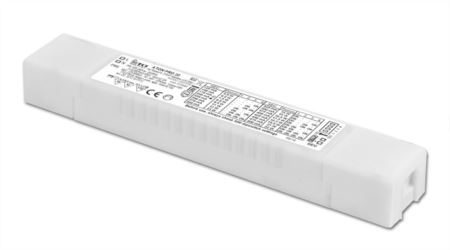

ATON PRO 22/125-500
127680
![127680](/images/6128/2554/450x450/nocrop/enlarge/127680_foto.jpg)
€ 28,41
price VAT included
-
+
Features
Rated Voltage
220...240 V
Constant Current
Current
125 mA
220-240 V = Output power
5,5 W
Current
150 mA
220-240 V = Output power
6,5 W
Current
175 mA
220-240 V = Output power
7,5 W
Current
200 mA
220-240 V = Output power
8,5 W
Current
225 mA
220-240 V = Output power
9,5 W
Current
250 mA
220-240 V = Output power
11 W
Current
275 mA
220-240 V = Output power
12 W
Current
300 mA
220-240 V = Output power
13 W
Current
325 mA
220-240 V = Output power
14 W
Current
350 mA
220-240 V = Output power
15 W
Current
375 mA
220-240 V = Output power
16,5 W
Current
400 mA
220-240 V = Output power
17,5 W
Current
425 mA
220-240 V = Output power
18,5 W
Current
450 mA
220-240 V = Output power
19,5 W
Current
475 mA
220-240 V = Output power
21 W
Current
500 mA
220-240 V = Output power
22 W
Dimming:
NOT DIMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
Approvals:
ENEC
RCM
CE
EAC
UKCA
Plastic case:
Slim
IP 20 (Independent Use)
IP 67 with linear case 180066/390
Minimum cut-out hole diameter:
38 mm
Size:
187 x 21 x 30 mm
last update:
3/11/2024
Output voltage (min/max)
125 mA
20...44
150 mA
18...44
175 mA
16...44
200 mA
15...44
225 mA
15...44
250 mA
10...44
275 mA
10...44
300 mA
10...44
325 mA
10...44
350 mA
10...44
375 mA
5...44
400 mA
5...44
425 mA
5...44
450 mA
5...44
475 mA
5...44
500 mA
5...44
