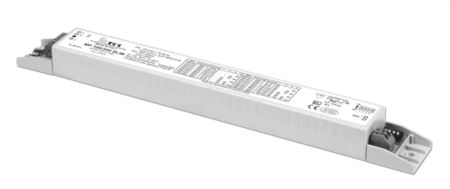

MPX 100/350 277V SLIM
127671
![127671](/images/6128/2594/450x450/nocrop/enlarge/127671_foto.jpg)
€ 36,42
price VAT included
-
+
Features
Rated Voltage
110...127 V
220...240 V
277 V
Constant Current
Current
200 mA
220-240 V = Output power
59 W
110-127 V =
59 W
Current
210 mA
220-240 V = Output power
61,5 W
110-127 V =
61,5 W
Current
220 mA
220-240 V = Output power
64,5 W
110-127 V =
64,5 W
Current
230 mA
220-240 V = Output power
67,5 W
110-127 V =
67,5 W
Current
240 mA
220-240 V = Output power
70,5 W
110-127 V =
70,5 W
Current
250 mA
220-240 V = Output power
73,5 W
110-127 V =
73,5 W
Current
260 mA
220-240 V = Output power
76,5 W
110-127 V =
76,5 W
Current
270 mA
220-240 V = Output power
79,5 W
110-127 V =
79,5 W
Current
280 mA
220-240 V = Output power
82,5 W
110-127 V =
80 W
Current
290 mA
220-240 V = Output power
85 W
110-127 V =
80 W
Current
300 mA
220-240 V = Output power
88 W
110-127 V =
80 W
Current
310 mA
220-240 V = Output power
91 W
110-127 V =
80 W
Current
320 mA
220-240 V = Output power
94 W
110-127 V =
80 W
Current
330 mA
220-240 V = Output power
97 W
110-127 V =
80 W
Current
340 mA
220-240 V = Output power
100 W
110-127 V =
80 W
Current
350 mA
220-240 V = Output power
100 W
110-127 V =
80 W
Dimming:
NOT DIMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
NOT SELV (>120V)
WIDE RANGE INPUT VOLTAGE
4/5 kV DM/CM SURGE Input Protection
Suitable for AUTOMATIC WIRING MACHINE
Approvals:
KEMAKEUR
ENEC
UL (other than class 2)
RCM
CE
EAC
UKCA
Plastic case:
Slim
for Built-in
ZHAGA BL2/ZS5
Size:
280 x 21 x 30 mm
last update:
5/9/2024
Output voltage (min/max)
200 mA
60...295
210 mA
60...295
220 mA
60...295
230 mA
60...295
240 mA
60...295
250 mA
60...295
260 mA
60...295
270 mA
60...295
280 mA
60...295
290 mA
60...295
300 mA
60...295
310 mA
60...295
320 mA
60...295
330 mA
60...295
340 mA
60...295
350 mA
60...286
