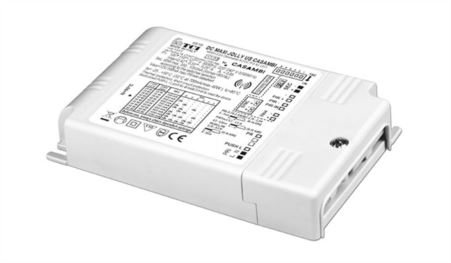

DC MAXI JOLLY US CASAMBI
127644
€ 109,80
price VAT included
-
+
Features
Rated Voltage
110...127 V
220...240 V
Constant Current
Current
350 mA
220-240 V = Output power
25 W
110-127 V =
25 W
Current
500 mA
220-240 V = Output power
35 W
110-127 V =
35 W
Current
550 mA
220-240 V = Output power
39 W
110-127 V =
39 W
Current
650 mA
220-240 V = Output power
46 W
110-127 V =
40 W
Current
700 mA
220-240 V = Output power
50 W
110-127 V =
40 W
Current
750 mA
220-240 V = Output power
54 W
110-127 V =
40 W
Current
850 mA
220-240 V = Output power
60 W
110-127 V =
40 W
Current
900 mA
220-240 V = Output power
60 W
110-127 V =
40 W
Current
1050 mA
220-240 V = Output power
60 W
110-127 V =
40 W
Dimming:
WIRELESS CASAMBI
PUSH (on the Mains)
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV >60/< />
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
WIDE RANGE INPUT VOLTAGE
4/5 kV DM/CM SURGE Input Protection
12 V AUX. output
EXTERNAL NTC INPUT
Approvals:
ENEC
UL (other than class 2)
RCM
CE
EAC
UKCA
Plastic case:
Square
IP 20 (Independent Use)
ZHAGA AM3
Minimum cut-out hole diameter:
84 mm
Size:
124 x 22 x 79 mm
last update:
6/10/2024
Output voltage (min/max)
350 mA
2...74
500 mA
2...72
550 mA
2...72
650 mA
2...72
700 mA
2...72
750 mA
2...72
850 mA
2...70
900 mA
2...66
1050 mA
2...57
