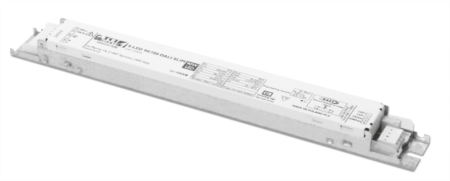

S-LED 90/700 DALI SLIM
127615
€ 39,71
price VAT included
-
+
Features
Rated Voltage
220...240 V
Constant Current
Current
AOC via cables (ADJ. OUT. CURRENT)
Current
LEDset / RESISTOR
Current
250 mA
220-240 V = Output power
55 W
Current
270 mA
220-240 V = Output power
59.4 W
Current
290 mA
220-240 V = Output power
63.8 W
Current
310 mA
220-240 V = Output power
68.2 W
Current
330 mA
220-240 V = Output power
72.6 W
Current
350 mA
220-240 V = Output power
77 W
Current
370 mA
220-240 V = Output power
81.4 W
Current
390 mA
220-240 V = Output power
85.8 W
Current
410 mA
220-240 V = Output power
90 W
Current
430 mA
220-240 V = Output power
90 W
Current
450 mA
220-240 V = Output power
90 W
Current
470 mA
220-240 V = Output power
90 W
Current
490 mA
220-240 V = Output power
90 W
Current
510 mA
220-240 V = Output power
90 W
Current
530 mA
220-240 V = Output power
90 W
Current
550 mA
220-240 V = Output power
90 W
Current
580 mA
220-240 V = Output power
90 W
Current
610 mA
220-240 V = Output power
90 W
Current
640 mA
220-240 V = Output power
90 W
Current
670 mA
220-240 V = Output power
90 W
Current
700 mA
220-240 V = Output power
90 W
Dimming:
DALI-2 (also DALI-1)
BILEVEL Function
CLO Function
DC EMERGENCY Function
FULL PROGRAMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
NOT SELV (>120V)
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
Approvals:
ENEC
CCC
RCM
CE
EAC
UKCA
Plastic case:
Slim
IP 20 (Independent Use)
Size:
280 x 21 x 30 mm
last update:
5/15/2024
