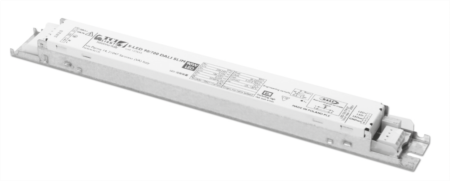

S-LED 60/500 DALI SLIM
127612
€ 32,98
price VAT included
-
+
Features
Rated Voltage
220...240 V
Constant Current
Current
AOC via cables (ADJ. OUT. CURRENT)
Current
LEDset / RESISTOR
Current
150 mA
220-240 V = Output power
33 W
Current
155 mA
220-240 V = Output power
34,1 W
Current
160 mA
220-240 V = Output power
35,2 W
Current
167 mA
220-240 V = Output power
36,7 W
Current
170 mA
220-240 V = Output power
37,4 W
Current
175 mA
220-240 V = Output power
38,5 W
Current
180 mA
220-240 V = Output power
39,6 W
Current
184 mA
220-240 V = Output power
40,4 W
Current
185 mA
220-240 V = Output power
40,7 W
Current
190 mA
220-240 V = Output power
41,8 W
Current
200 mA
220-240 V = Output power
44 W
Current
210 mA
220-240 V = Output power
46,2 W
Current
215 mA
220-240 V = Output power
47,3 W
Current
217 mA
220-240 V = Output power
47,7 W
Current
220 mA
220-240 V = Output power
48,4 W
Current
225 mA
220-240 V = Output power
49,5 W
Current
230 mA
220-240 V = Output power
50,6 W
Current
234 mA
220-240 V = Output power
51,4 W
Current
240 mA
220-240 V = Output power
52,8 W
Current
245 mA
220-240 V = Output power
53,9 W
Current
250 mA
220-240 V = Output power
55 W
Current
260 mA
220-240 V = Output power
57,2 W
Current
267 mA
220-240 V = Output power
58,7 W
Current
270 mA
220-240 V = Output power
59,4 W
Current
275 mA
220-240 V = Output power
60 W
Current
280 mA
220-240 V = Output power
60 W
Current
284 mA
220-240 V = Output power
60 W
Current
290 mA
220-240 V = Output power
60 W
Current
300 mA
220-240 V = Output power
60 W
Current
305 mA
220-240 V = Output power
60 W
Current
310 mA
220-240 V = Output power
60 W
Current
317 mA
220-240 V = Output power
60 W
Current
320 mA
220-240 V = Output power
60 W
Current
325 mA
220-240 V = Output power
60 W
Current
330 mA
220-240 V = Output power
60 W
Current
334 mA
220-240 V = Output power
60 W
Current
335 mA
220-240 V = Output power
60 W
Current
340 mA
220-240 V = Output power
60 W
Current
350 mA
220-240 V = Output power
60 W
Current
360 mA
220-240 V = Output power
60 W
Current
370 mA
220-240 V = Output power
60 W
Current
375 mA
220-240 V = Output power
60 W
Current
380 mA
220-240 V = Output power
60 W
Current
390 mA
220-240 V = Output power
60 W
Current
400 mA
220-240 V = Output power
60 W
Current
410 mA
220-240 V = Output power
60 W
Current
420 mA
220-240 V = Output power
60 W
Current
425 mA
220-240 V = Output power
60 W
Current
430 mA
220-240 V = Output power
60 W
Current
440 mA
220-240 V = Output power
60 W
Current
450 mA
220-240 V = Output power
60 W
Current
460 mA
220-240 V = Output power
60 W
Current
470 mA
220-240 V = Output power
60 W
Current
475 mA
220-240 V = Output power
60 W
Current
480 mA
220-240 V = Output power
60 W
Current
485 mA
220-240 V = Output power
60 W
Current
490 mA
220-240 V = Output power
60 W
Current
500 mA
220-240 V = Output power
60 W
Dimming:
DALI-2 (also DALI-1)
PUSH (on the Mains)
BILEVEL Function
CLO Function
DC EMERGENCY Function
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
NOT SELV (>120V)
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
Approvals:
ENEC
CCC
RCM
CE
EAC
UKCA
Plastic case:
Slim
for Built-in
Size:
280 x 21 x 30 mm
last update:
5/15/2024
