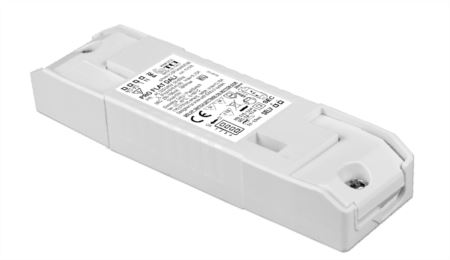

PRO FLAT DALI
127576
![127576](/images/6128/2705/450x450/nocrop/enlarge/127576-PRO-FLAT-DALI-foto.jpg)
€ 39,65
price VAT included
-
+
Features
Rated Voltage
220...240 V
Constant Current
Current
AOC via cables (ADJ. OUT. CURRENT)
Current
250 mA
220-240 V = Output power
11,5 W
Current
280 mA
220-240 V = Output power
13 W
Current
310 mA
220-240 V = Output power
14,5 W
Current
340 mA
220-240 V = Output power
15,5 W
Current
370 mA
220-240 V = Output power
16,7 W
Current
400 mA
220-240 V = Output power
18 W
Current
430 mA
220-240 V = Output power
19,2 W
Current
460 mA
220-240 V = Output power
20,5 W
Current
490 mA
220-240 V = Output power
21,5 W
Current
520 mA
220-240 V = Output power
22,8 W
Current
550 mA
220-240 V = Output power
23,7 W
Current
580 mA
220-240 V = Output power
24,5 W
Current
610 mA
220-240 V = Output power
25,7 W
Current
640 mA
220-240 V = Output power
26 W
Current
670 mA
220-240 V = Output power
26 W
Current
700 mA
220-240 V = Output power
26 W
Dimming:
DALI-2 (also DALI-1)
PUSH (on the Mains)
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
Approvals:
KEMAKEUR
ENEC
CCC
RCM
CE
EAC
UKCA
Plastic case:
Slim
Square
IP 20 (Independent Use)
Minimum cut-out hole diameter:
50 mm
Size:
146 x 22 x 43 mm
last update:
5/14/2024
Output voltage (min/max)
250 mA
10...49
280 mA
10...49
310 mA
10...49
340 mA
10...48
370 mA
10...48
400 mA
10...47
430 mA
10...47
460 mA
10...47
490 mA
10...46
520 mA
10...46
550 mA
10...45
580 mA
10...44
610 mA
10...44
640 mA
10...41
670 mA
10...39
700 mA
10...37
