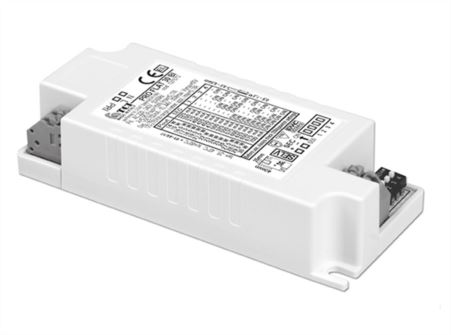

PRO FLAT 30 BI
127573
€ 19,86
price VAT included
-
+
Features
Rated Voltage
220...240 V
Constant Current
Current
350 mA
220-240 V = Output power
15 W
Current
375 mA
220-240 V = Output power
16 W
Current
400 mA
220-240 V = Output power
17 W
Current
450 mA
220-240 V = Output power
18 W
Current
475 mA
220-240 V = Output power
21 W
Current
500 mA
220-240 V = Output power
22 W
Current
525 mA
220-240 V = Output power
23 W
Current
550 mA
220-240 V = Output power
24 W
Current
575 mA
220-240 V = Output power
25 W
Current
600 mA
220-240 V = Output power
26 W
Current
625 mA
220-240 V = Output power
27 W
Current
650 mA
220-240 V = Output power
28 W
Current
675 mA
220-240 V = Output power
29 W
Current
700 mA
220-240 V = Output power
30 W
Current
725 mA
220-240 V = Output power
32 W
Dimming:
NOT DIMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
Approvals:
KEMAKEUR
ENEC
CCC
RCM
CE
EAC
UKCA
Plastic case:
for Built-in
Size:
97 x 21 x 42 mm
last update:
3/11/2024
Output voltage (min/max)
350 mA
10...44
375 mA
10...44
400 mA
10...44
450 mA
10...44
475 mA
10...44
500 mA
8...44
525 mA
8...44
550 mA
5...44
575 mA
5...44
600 mA
5...44
625 mA
5...44
650 mA
2...44
675 mA
2...44
700 mA
2...44
725 mA
2...44
