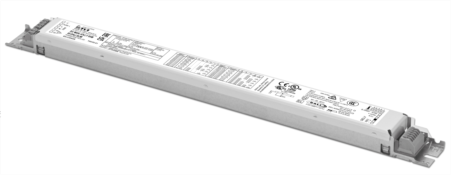

DC MAXI JOLLY SVM 65 DALI SLIM
127564
€ 81,70
price VAT included
-
+
Features
Rated Voltage
110...127 V
220...240 V
277 V
Constant Current
Current
350 mA
220-240 V = Output power
17,5 W
110-127 V =
17,5 W
Current
400 mA
220-240 V = Output power
20 W
110-127 V =
20 W
Current
450 mA
220-240 V = Output power
22,5 W
110-127 V =
22,5 W
Current
500 mA
220-240 V = Output power
25 W
110-127 V =
25 W
Current
550 mA
220-240 V = Output power
27,5 W
110-127 V =
27,5 W
Current
600 mA
220-240 V = Output power
30 W
110-127 V =
30 W
Current
650 mA
220-240 V = Output power
32,5 W
110-127 V =
32,5 W
Current
700 mA
220-240 V = Output power
35 W
110-127 V =
35 W
Current
750 mA
220-240 V = Output power
37,5 W
110-127 V =
37,5 W
Current
800 mA
220-240 V = Output power
40 W
110-127 V =
40 W
Current
850 mA
220-240 V = Output power
42,5 W
110-127 V =
42,5 W
Current
900 mA
220-240 V = Output power
45 W
110-127 V =
45 W
Current
950 mA
220-240 V = Output power
47,5 W
110-127 V =
45 W
Current
1000 mA
220-240 V = Output power
50 W
110-127 V =
45 W
Current
1050 mA
220-240 V = Output power
52,5 W
110-127 V =
45 W
Current
1100 mA
220-240 V = Output power
55 W
110-127 V =
45 W
Current
1150 mA
220-240 V = Output power
57,5 W
110-127 V =
45 W
Current
1200 mA
220-240 V = Output power
60 W
110-127 V =
45 W
Current
1250 mA
220-240 V = Output power
62,5 W
110-127 V =
45 W
Current
1300 mA
220-240 V = Output power
65 W
110-127 V =
45 W
Current
1350 mA
220-240 V = Output power
65 W
110-127 V =
45 W
Current
1400 mA
220-240 V = Output power
65 W
110-127 V =
45 W
Dimming:
DALI-2 (also DALI-1)
1-10V - 0-10V
PUSH (on the Mains)
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
WIDE RANGE INPUT VOLTAGE
Suitable for AUTOMATIC WIRING MACHINE
Approvals:
UL LISTED (class P)
KEMAKEUR
ENEC
CCC
RCM
CE
EAC
UKCA
Plastic case:
Slim
for Built-in
IP 67 with linear case 180066/390
Size:
360 x 21 x 30 mm
last update:
5/15/2024
Output voltage (min/max)
350 mA
20...50
400 mA
20...50
450 mA
20...50
500 mA
20...50
550 mA
20...50
600 mA
20...50
650 mA
20...50
700 mA
20...50
750 mA
20...50
800 mA
20...50
850 mA
20...50
900 mA
20...50
950 mA
20...50
1000 mA
20...50
1050 mA
20...50
1100 mA
20...50
1150 mA
20...50
1200 mA
20...50
1250 mA
20...50
1300 mA
20...50
1350 mA
20...48
1400 mA
20...46,5
Product info
Country of production:
Italy
EAN:
8010703384002
HS code:
85044083
