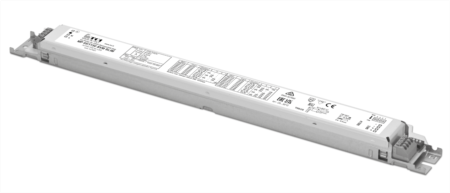

MP 65/1150 SVM SLIM
127561
€ 48,80
price VAT included
-
+
Features
Rated Voltage
220...240 V
Constant Current
Current
350 mA
220-240 V = Output power
19.5 W
Current
400 mA
220-240 V = Output power
22.5 W
Current
500 mA
220-240 V = Output power
28 W
Current
550 mA
220-240 V = Output power
30.5 W
Current
600 mA
220-240 V = Output power
33.5 W
Current
650 mA
220-240 V = Output power
36.5 W
Current
700 mA
220-240 V = Output power
39 W
Current
750 mA
220-240 V = Output power
42 W
Current
800 mA
220-240 V = Output power
44.5 W
Current
850 mA
220-240 V = Output power
47.5 W
Current
900 mA
220-240 V = Output power
50.5 W
Current
950 mA
220-240 V = Output power
53 W
Current
1000 mA
220-240 V = Output power
56 W
Current
1100 mA
220-240 V = Output power
61.5 W
Current
1150 mA
220-240 V = Output power
65 W
Dimming:
NOT DIMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
Approvals:
ENEC
RCM
CE
EAC
UKCA
Plastic case:
Slim
for Built-in
Size:
360 x 21 x 30 mm
last update:
3/11/2024
Output voltage (min/max)
350 mA
20...56
400 mA
20...56
500 mA
20...56
550 mA
20...56
600 mA
20...56
650 mA
20...56
700 mA
20...56
750 mA
15...56
800 mA
15...56
850 mA
15...56
900 mA
15...56
950 mA
15...56
1000 mA
10...56
1100 mA
10...56
1150 mA
10...56
