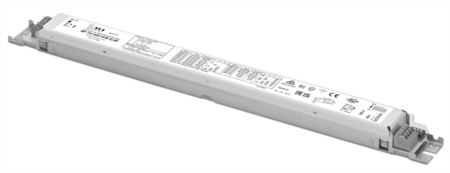

MP 70/1400 SVM SLIM
127560
![127560](/images/6128/2579/450x450/nocrop/enlarge/127560_foto.jpg)
€ 48,80
price VAT included
-
+
Features
Rated Voltage
220...240 V
Constant Current
Current
350 mA
220-240 V = Output power
19,5 W
Current
450 mA
220-240 V = Output power
25 W
Current
550 mA
220-240 V = Output power
30,5 W
Current
650 mA
220-240 V = Output power
36,5 W
Current
750 mA
220-240 V = Output power
42 W
Current
830 mA
220-240 V = Output power
46,5 W
Current
930 mA
220-240 V = Output power
52 W
Current
1000 mA
220-240 V = Output power
56 W
Current
1050 mA
220-240 V = Output power
58,5 W
Current
1150 mA
220-240 V = Output power
64,5 W
Current
1250 mA
220-240 V = Output power
67,5 W
Current
1330 mA
220-240 V = Output power
70 W
Current
1400 mA
220-240 V = Output power
70 W
Dimming:
NOT DIMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
Suitable for AUTOMATIC WIRING MACHINE
Approvals:
KEMAKEUR
ENEC
RCM
CE
EAC
UKCA
Plastic case:
Slim
for Built-in
IP 67 with linear case 180066/390
Size:
360 x 21 x 30 mm
last update:
3/11/2024
Output voltage (min/max)
350 mA
35...56
450 mA
35...56
550 mA
35...56
650 mA
30...56
750 mA
30...56
830 mA
30...56
930 mA
25...56
1000 mA
25...56
1050 mA
25...56
1150 mA
25...56
1250 mA
20...54
1330 mA
15...52,5
1400 mA
10...50
