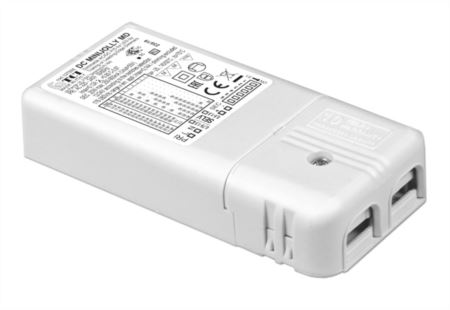

DC MINI JOLLY MD
127556
€ 29,90
price VAT included
-
+
Features
Rated Voltage
220...240 V
Constant Current
Current
250 mA
220-240 V = Output power
12 W
Current
300 mA
220-240 V = Output power
14 W
Current
350 mA
220-240 V = Output power
17 W
Current
400 mA
220-240 V = Output power
19 W
Current
450 mA
220-240 V = Output power
20 W
Current
500 mA
220-240 V = Output power
20 W
Current
550 mA
220-240 V = Output power
20 W
Current
600 mA
220-240 V = Output power
20 W
Current
650 mA
220-240 V = Output power
20 W
Current
700 mA
220-240 V = Output power
20 W
Current
750 mA
220-240 V = Output power
20 W
Current
800 mA
220-240 V = Output power
20 W
Current
850 mA
220-240 V = Output power
20 W
Current
900 mA
220-240 V = Output power
20 W
Constant Voltage (LED STRIP)
Current
12 V
220-240 V = Output power
11 W
Current
24 V
220-240 V = Output power
20 W
Dimming:
PHASE CUT / IGBT - TRIAC
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: PWM
Approvals:
KEMAKEUR
ENEC
RCM
CE
EAC
UKCA
Plastic case:
IP 20 (Independent Use)
Minimum cut-out hole diameter:
55 mm
Size:
111 x 22 x 52 mm
last update:
5/15/2024
Output voltage (min/max)
250 mA
15...48
300 mA
15...48
350 mA
10...48
400 mA
5...48
450 mA
5...44
500 mA
5...40
550 mA
5...36
600 mA
5...33
650 mA
5...31
700 mA
5...29
750 mA
5...27
800 mA
5...25
850 mA
5...23
900 mA
5...22
