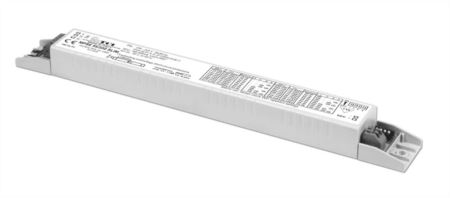

MPSE 40/350 SLIM
127527
€ 32,90
price VAT included
-
+
Features
Rated Voltage
220...240 V
Constant Current
Current
200 mA
220-240 V = Output power
24 W
Current
210 mA
220-240 V = Output power
25,2 W
Current
220 mA
220-240 V = Output power
26,4 W
Current
230 mA
220-240 V = Output power
27,6 W
Current
240 mA
220-240 V = Output power
28,8 W
Current
250 mA
220-240 V = Output power
30 W
Current
260 mA
220-240 V = Output power
31,2 W
Current
270 mA
220-240 V = Output power
32,4 W
Current
280 mA
220-240 V = Output power
33,6 W
Current
290 mA
220-240 V = Output power
34,8 W
Current
300 mA
220-240 V = Output power
36 W
Current
310 mA
220-240 V = Output power
37,2 W
Current
320 mA
220-240 V = Output power
38,4 W
Current
330 mA
220-240 V = Output power
39,6 W
Current
340 mA
220-240 V = Output power
40 W
Current
350 mA
220-240 V = Output power
40 W
Dimming:
NOT DIMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
NOT SELV (>120V)
Approvals:
ENEC
RCM
CE
EAC
UKCA
Plastic case:
Slim
for Built-in
Size:
237 x 21 x 30 mm
last update:
5/9/2024
Output voltage (min/max)
200 mA
30...120
210 mA
30...120
220 mA
30...120
230 mA
30...120
240 mA
30...120
250 mA
30...120
260 mA
30...120
270 mA
30...120
280 mA
20...120
290 mA
20...120
300 mA
20...120
310 mA
20...120
320 mA
20...120
330 mA
20...120
340 mA
20...118
350 mA
20...115
