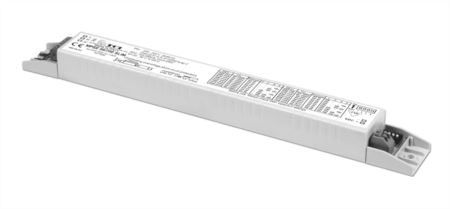

MPSE 55/700 SLIM
127526
€ 39,33
price VAT included
-
+
Features
Rated Voltage
220...240 V
Constant Current
Current
325 mA
220-240 V = Output power
43,5 W
Current
350 mA
220-240 V = Output power
49 W
Current
375 mA
220-240 V = Output power
52,5 W
Current
400 mA
220-240 V = Output power
55 W
Current
425 mA
220-240 V = Output power
55 W
Current
450 mA
220-240 V = Output power
55 W
Current
475 mA
220-240 V = Output power
55 W
Current
500 mA
220-240 V = Output power
55 W
Current
525 mA
220-240 V = Output power
55 W
Current
550 mA
220-240 V = Output power
55 W
Current
575 mA
220-240 V = Output power
55 W
Current
600 mA
220-240 V = Output power
55 W
Current
625 mA
220-240 V = Output power
55 W
Current
650 mA
220-240 V = Output power
55 W
Current
675 mA
220-240 V = Output power
55 W
Current
700 mA
220-240 V = Output power
55 W
Dimming:
NOT DIMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
NOT SELV (>120V)
Suitable for AUTOMATIC WIRING MACHINE
Approvals:
KEMAKEUR
ENEC
RCM
CE
EAC
UKCA
Plastic case:
Slim
for Built-in
Size:
237 x 21 x 30 mm
last update:
5/9/2024
Output voltage (min/max)
325 mA
50...140
350 mA
50...140
375 mA
50...140
400 mA
50...138
425 mA
50...130
450 mA
50...123
475 mA
50...116
500 mA
50...110
525 mA
50...105
550 mA
50...100
575 mA
50...96
600 mA
50...92
625 mA
50...88
650 mA
50...85
675 mA
50...82
700 mA
50...79
