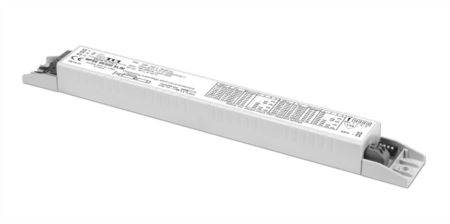

MPSE 55/350 SLIM

127524

127524
€ 37,82
price VAT included

-
+

Features

Rated Voltage
220...240 V
Constant Current
Current
100 mA
220-240 V = Output power
26 W
Current
117 mA
220-240 V = Output power
30,5 W
Current
134 mA
220-240 V = Output power
35 W
Current
150 mA
220-240 V = Output power
39 W
Current
167 mA
220-240 V = Output power
43,5 W
Current
184 mA
220-240 V = Output power
48 W
Current
200 mA
220-240 V = Output power
52 W
Current
217 mA
220-240 V = Output power
55 W
Current
234 mA
220-240 V = Output power
55 W
Current
250 mA
220-240 V = Output power
55 W
Current
267 mA
220-240 V = Output power
55 W
Current
284 mA
220-240 V = Output power
55 W
Current
300 mA
220-240 V = Output power
55 W
Current
317 mA
220-240 V = Output power
55 W
Current
334 mA
220-240 V = Output power
55 W
Current
350 mA
220-240 V = Output power
55 W
Dimming:
NOT DIMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
NOT SELV (>120V)
Suitable for AUTOMATIC WIRING MACHINE
Approvals:
KEMAKEUR
ENEC
RCM
CE
EAC
UKCA
Plastic case:
Slim
for Built-in
Size:
237 x 21 x 30 mm
last update:
10/9/2024
Output voltage (min/max)
100 mA
70...260
117 mA
60...260
134 mA
60...260
150 mA
60...260
167 mA
60...260
184 mA
60...260
200 mA
60...260
217 mA
60...253
234 mA
40...235
250 mA
40...220
267 mA
40...206
284 mA
40...194
300 mA
40...184
317 mA
40...174
334 mA
40...165
350 mA
40...157
