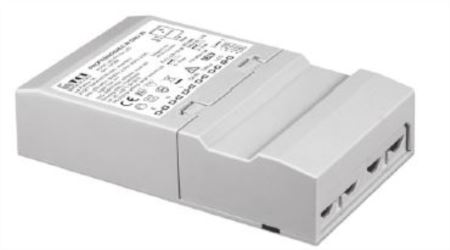

PROFESSIONALE IN DALI 20
127508
€ 53,07
price VAT included
-
+
Features
Rated Voltage
220...240 V
Constant Current
Current
AOC via cables (ADJ. OUT. CURRENT)
Current
125 mA
220-240 V = Output power
6.7 W
Current
150 mA
220-240 V = Output power
8 W
Current
175 mA
220-240 V = Output power
9.4 W
Current
200 mA
220-240 V = Output power
10.8 W
Current
225 mA
220-240 V = Output power
12.15 W
Current
250 mA
220-240 V = Output power
13.5 W
Current
275 mA
220-240 V = Output power
14.8 W
Current
300 mA
220-240 V = Output power
16 W
Current
325 mA
220-240 V = Output power
17.5 W
Current
350 mA
220-240 V = Output power
19 W
Current
375 mA
220-240 V = Output power
20 W
Current
400 mA
220-240 V = Output power
20 W
Current
425 mA
220-240 V = Output power
20 W
Current
450 mA
220-240 V = Output power
20 W
Current
475 mA
220-240 V = Output power
20 W
Current
500 mA
220-240 V = Output power
20 W
Dimming:
DALI-2 (also DALI-1)
CLO Function
FULL PROGRAMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
LOOPING on PRIMARY SIDE
Approvals:
ENEC
RCM
CE
EAC
UKCA
Plastic case:
Square
IP 20 (Independent Use)
Minimum cut-out hole diameter:
88 mm
Size:
132 x 30 x 80 mm
last update:
5/14/2024
Output voltage (min/max)
125 mA
10...54
150 mA
10...54
175 mA
10...54
200 mA
10...54
225 mA
10...54
250 mA
10...54
275 mA
10...54
300 mA
10...54
325 mA
10...54
350 mA
10...54
375 mA
10...54
400 mA
10...54
425 mA
10...47
450 mA
10...44
475 mA
10...42
500 mA
10...40
