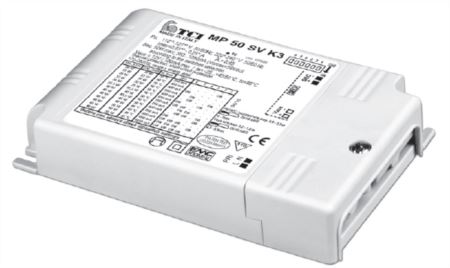

MP 50 SV K3
127500
€ 51,97
price VAT included
-
+
Features
Rated Voltage
110...127 V
220...240 V
Constant Current
Current
350 mA
220-240 V = Output power
20 W
110-127 V =
20 W
Current
400 mA
220-240 V = Output power
23 W
110-127 V =
23 W
Current
500 mA
220-240 V = Output power
29 W
110-127 V =
29 W
Current
550 mA
220-240 V = Output power
32 W
110-127 V =
32 W
Current
600 mA
220-240 V = Output power
35 W
110-127 V =
35 W
Current
650 mA
220-240 V = Output power
37.5 W
110-127 V =
37.5 W
Current
700 mA
220-240 V = Output power
40 W
110-127 V =
40 W
Current
750 mA
220-240 V = Output power
43.5 W
110-127 V =
40 W
Current
800 mA
220-240 V = Output power
46 W
110-127 V =
40 W
Current
850 mA
220-240 V = Output power
49 W
110-127 V =
40 W
Current
900 mA
220-240 V = Output power
50 W
110-127 V =
40 W
Current
950 mA
220-240 V = Output power
50 W
110-127 V =
40 W
Current
1050 mA
220-240 V = Output power
50 W
110-127 V =
40 W
Dimming:
NOT DIMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
WIDE RANGE INPUT VOLTAGE
4/5 kV DM/CM SURGE Input Protection
12 V AUX. output
Approvals:
ENEC
RCM
CE
EAC
UKCA
Plastic case:
Square
IP 20 (Independent Use)
ZHAGA AM3
Minimum cut-out hole diameter:
84 mm
Size:
124 x 22 x 79 mm
last update:
10/14/2022
Output voltage (min/max)
350 mA
10...58
400 mA
10...58
500 mA
10...58
550 mA
10...58
600 mA
10...58
650 mA
10...58
700 mA
10...58
750 mA
10...58
800 mA
10...58
850 mA
10...58
900 mA
10...55
950 mA
10...52
1050 mA
10...47
