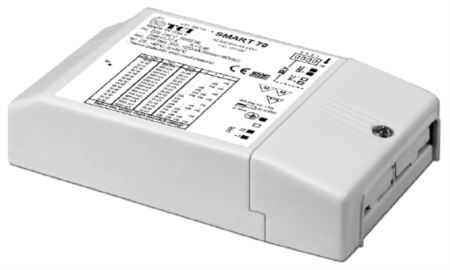

SMART 70
127402
€ 50,81
price VAT included
-
+
Features
Rated Voltage
220...240 V
Constant Current
Current
300 mA
220-240 V = Output power
26 W
Current
350 mA
220-240 V = Output power
30 W
Current
400 mA
220-240 V = Output power
32 W
Current
450 mA
220-240 V = Output power
35 W
Current
500 mA
220-240 V = Output power
40 W
Current
550 mA
220-240 V = Output power
45 W
Current
600 mA
220-240 V = Output power
50 W
Current
650 mA
220-240 V = Output power
55 W
Current
700 mA
220-240 V = Output power
60 W
Current
750 mA
220-240 V = Output power
64 W
Current
800 mA
220-240 V = Output power
70 W
Current
850 mA
220-240 V = Output power
70 W
Current
900 mA
220-240 V = Output power
70 W
Current
950 mA
220-240 V = Output power
70 W
Current
1000 mA
220-240 V = Output power
70 W
Current
1050 mA
220-240 V = Output power
70 W
Dimming:
NOT DIMMABLE
Additional technical features:
ACTIVE PFC (pf>0.9)
SELV >60/< />
EXTERNAL NTC INPUT
Approvals:
KEMAKEUR
ENEC
CE
EAC
UKCA
Plastic case:
Square
IP 20 (Independent Use)
Minimum cut-out hole diameter:
90 mm
Size:
129 x 30 x 76 mm
last update:
4/4/2024
Output voltage (min/max)
300 mA
50...58
350 mA
43...85
400 mA
38...85
450 mA
33...85
500 mA
30...85
550 mA
25...85
600 mA
25...85
650 mA
25...85
700 mA
25...86
750 mA
25...85
800 mA
25...88
850 mA
25...82
900 mA
25...77
950 mA
25...74
1000 mA
25...70
1050 mA
25...67
