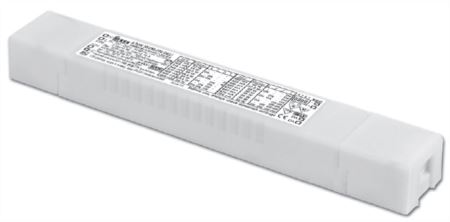

ATON 30/250-700 DALI
127370
€ 49,41
price VAT included
-
+
Features
Rated Voltage
220...240 V
Constant Current
Current
250 mA
220-240 V = Output power
13 W
Current
280 mA
220-240 V = Output power
15 W
Current
310 mA
220-240 V = Output power
16,5 W
Current
340 mA
220-240 V = Output power
18 W
Current
370 mA
220-240 V = Output power
19,5 W
Current
400 mA
220-240 V = Output power
21 W
Current
430 mA
220-240 V = Output power
22,5 W
Current
460 mA
220-240 V = Output power
24 W
Current
490 mA
220-240 V = Output power
26 W
Current
520 mA
220-240 V = Output power
27,5 W
Current
550 mA
220-240 V = Output power
29 W
Current
580 mA
220-240 V = Output power
30 W
Current
610 mA
220-240 V = Output power
30 W
Current
640 mA
220-240 V = Output power
30 W
Current
670 mA
220-240 V = Output power
30 W
Current
700 mA
220-240 V = Output power
30 W
Dimming:
DALI-1
PUSH (on the Mains)
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: PWM
4/5 kV DM/CM SURGE Input Protection
Suitable for AUTOMATIC WIRING MACHINE
Approvals:
KEMAKEUR
ENEC
CCC
RCM
CE
EAC
UKCA
Plastic case:
Slim
IP 20 (Independent Use)
IP 67 with linear case 180066/390
Minimum cut-out hole diameter:
38 mm
Size:
220 x 21 x 30 mm
last update:
2/16/2022
Output voltage (min/max)
250 mA
20...54
280 mA
15...54
310 mA
10...54
340 mA
2...54
370 mA
2...54
400 mA
2...54
430 mA
2...54
460 mA
2...54
490 mA
2...54
520 mA
2...50
550 mA
2...50
580 mA
2...50
610 mA
2...50
640 mA
2...46
670 mA
2...45
700 mA
2...43
