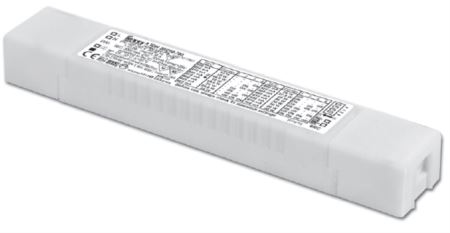

ATON 30/700-1400
127364
€ 34,43
price VAT included
-
+
Features
Rated Voltage
220...240 V
Constant Current
Current
700 mA
220-240 V = Output power
21 W
Current
750 mA
220-240 V = Output power
23 W
Current
800 mA
220-240 V = Output power
24 W
Current
850 mA
220-240 V = Output power
25 W
Current
900 mA
220-240 V = Output power
27 W
Current
950 mA
220-240 V = Output power
28 W
Current
1000 mA
220-240 V = Output power
30 W
Current
1050 mA
220-240 V = Output power
30 W
Current
1100 mA
220-240 V = Output power
30 W
Current
1150 mA
220-240 V = Output power
30 W
Current
1200 mA
220-240 V = Output power
30 W
Current
1250 mA
220-240 V = Output power
30 W
Current
1300 mA
220-240 V = Output power
30 W
Current
1350 mA
220-240 V = Output power
30 W
Current
1400 mA
220-240 V = Output power
30 W
Dimming:
NOT DIMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
Suitable for AUTOMATIC WIRING MACHINE
Approvals:
KEMAKEUR
ENEC
RCM
CE
EAC
UKCA
Plastic case:
Slim
IP 20 (Independent Use)
IP 67 with linear case 180066/390
Minimum cut-out hole diameter:
38 mm
Size:
187 x 21 x 30 mm
last update:
3/11/2024
Output voltage (min/max)
700 mA
5...30
750 mA
5...30
800 mA
5...30
850 mA
5...30
900 mA
5...30
950 mA
5...30
1000 mA
5...30
1050 mA
5...28
1100 mA
5...27
1150 mA
5...26
1200 mA
5...25
1250 mA
5...24
1300 mA
5...23
1350 mA
5...22
1400 mA
5...21
