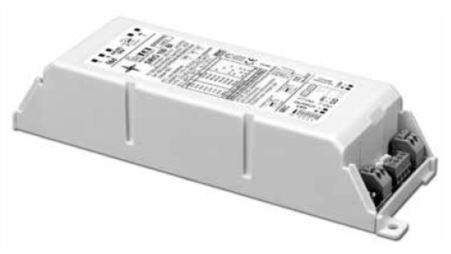

SIRIO 120/1000-2100 1-10V BILEVEL BI
127352
€ 119,78
price VAT included
-
+
Features
Rated Voltage
220...240 V
Constant Current
Current
1000 mA
220-240 V = Output power
58 W
Current
1100 mA
220-240 V = Output power
63,5 W
Current
1200 mA
220-240 V = Output power
69,5 W
Current
1300 mA
220-240 V = Output power
75 W
Current
1400 mA
220-240 V = Output power
81 W
Current
1500 mA
220-240 V = Output power
87 W
Current
1600 mA
220-240 V = Output power
92,5 W
Current
1700 mA
220-240 V = Output power
98,5 W
Current
1800 mA
220-240 V = Output power
104 W
Current
1900 mA
220-240 V = Output power
110 W
Current
2000 mA
220-240 V = Output power
116 W
Current
2100 mA
220-240 V = Output power
120 W
Dimming:
1-10V - 0-10V
BILEVEL Function
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: AM + PWM (MIXED) IEEE1789-2015
4/5 kV DM/CM SURGE Input Protection
EXTERNAL NTC INPUT
Approvals:
ENEC
CE
EAC
UKCA
Plastic case:
for Built-in
Size:
204 x 40 x 60 mm
last update:
2/2/2021
Output voltage (min/max)
1000 mA
20...58
1100 mA
20...58
1200 mA
20...58
1300 mA
20...58
1400 mA
20...58
1500 mA
20...58
1600 mA
20...58
1700 mA
20...58
1800 mA
20...58
1900 mA
20...58
2000 mA
20...58
2100 mA
20...57
