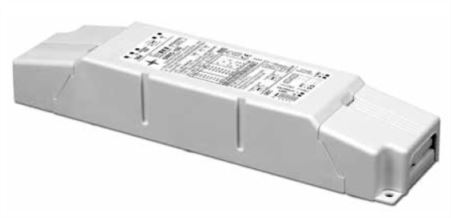

SIRIO 120/1000-2100 1-10V BILEVEL
127350
€ 119,78
price VAT included
-
+
Features
Rated Voltage
220...240 V
Constant Current
Current
1000 mA
220-240 V = Output power
58 W
Current
1100 mA
220-240 V = Output power
63,5 W
Current
1200 mA
220-240 V = Output power
69,5 W
Current
1300 mA
220-240 V = Output power
75 W
Current
1400 mA
220-240 V = Output power
81 W
Current
1500 mA
220-240 V = Output power
87 W
Current
1600 mA
220-240 V = Output power
92,5 W
Current
1700 mA
220-240 V = Output power
98,5 W
Current
1800 mA
220-240 V = Output power
104 W
Current
1900 mA
220-240 V = Output power
110 W
Current
2000 mA
220-240 V = Output power
116 W
Current
2100 mA
220-240 V = Output power
120 W
Dimming:
1-10V only
BILEVEL Function
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: AM + PWM (MIXED) IEEE1789-2015
4/5 kV DM/CM SURGE Input Protection
EXTERNAL NTC INPUT
Approvals:
ENEC
CE
EAC
UKCA
Plastic case:
IP 20 (Independent Use)
Minimum cut-out hole diameter:
80 mm
Size:
240 x 40 x 60 mm
last update:
2/2/2021
