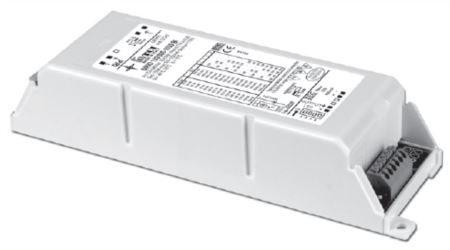

SIRIO 150/300-1050 BI
127242
€ 119,78
price VAT included
-
+
Features
Rated Voltage
220...240 V
Constant Current
Current
300 mA
220-240 V = Output power
50 W
Current
350 mA
220-240 V = Output power
57 W
Current
400 mA
220-240 V = Output power
66 W
Current
450 mA
220-240 V = Output power
74 W
Current
500 mA
220-240 V = Output power
82 W
Current
550 mA
220-240 V = Output power
90 W
Current
600 mA
220-240 V = Output power
99 W
Current
650 mA
220-240 V = Output power
107 W
Current
700 mA
220-240 V = Output power
116 W
Current
750 mA
220-240 V = Output power
123 W
Current
800 mA
220-240 V = Output power
132 W
Current
850 mA
220-240 V = Output power
140 W
Current
900 mA
220-240 V = Output power
148 W
Current
950 mA
220-240 V = Output power
150 W
Current
1000 mA
220-240 V = Output power
150 W
Current
1050 mA
220-240 V = Output power
150 W
Dimming:
NOT DIMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
NOT SELV (>120V)
4/5 kV DM/CM SURGE Input Protection
4/8 kV DM/CM SURGE Input Protection
6/6 kV DM/CM SURGE Input Protection
6/8 kV DM/CM SURGE Input Protection
12 V AUX. output
Approvals:
KEMAKEUR
ENEC
CE
EAC
UKCA
Plastic case:
for Built-in
Size:
204 x 40 x 60 mm
last update:
10/20/2022
Output voltage (min/max)
300 mA
75...165
350 mA
75...165
400 mA
75...165
450 mA
75...165
500 mA
70...165
550 mA
70...165
600 mA
70...165
650 mA
70...165
700 mA
70...165
750 mA
70...165
800 mA
70...165
850 mA
70...165
900 mA
70...165
950 mA
70...157
1000 mA
70...150
1050 mA
70...142
