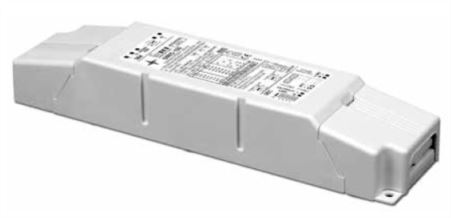

SIRIO 150/200-700 1-10V BILEVEL

127224

127224
€ 119,78
price VAT included

-
+

Features

Rated Voltage
220...240 V
Constant Current
Current
200 mA
220-240 V = Output power
54 W
Current
250 mA
220-240 V = Output power
67 W
Current
300 mA
220-240 V = Output power
80 W
Current
350 mA
220-240 V = Output power
94 W
Current
400 mA
220-240 V = Output power
108 W
Current
450 mA
220-240 V = Output power
121 W
Current
500 mA
220-240 V = Output power
135 W
Current
550 mA
220-240 V = Output power
145 W
Current
600 mA
220-240 V = Output power
150 W
Current
650 mA
220-240 V = Output power
150 W
Current
700 mA
220-240 V = Output power
150 W
Dimming:
1-10V only
BILEVEL Function
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
NOT SELV (>120V)
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
4/5 kV DM/CM SURGE Input Protection
4/8 kV DM/CM SURGE Input Protection
6/6 kV DM/CM SURGE Input Protection
6/8 kV DM/CM SURGE Input Protection
12 V AUX. output
EXTERNAL NTC INPUT
Approvals:
KEMAKEUR
ENEC
CE
EAC
UKCA
Plastic case:
IP 20 (Independent Use)
Minimum cut-out hole diameter:
80 mm
Size:
240 x 40 x 60 mm
last update:
2/2/2021
Output voltage (min/max)
200 mA
105...270
250 mA
105...270
300 mA
105...270
350 mA
105...270
400 mA
105...270
450 mA
105...270
500 mA
105...270
550 mA
105...265
600 mA
105...250
650 mA
105...230
700 mA
105...215
