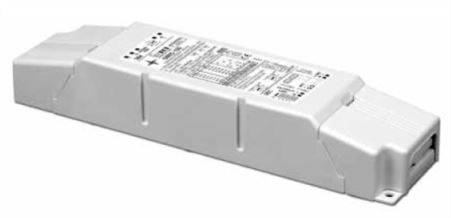

SIRIO 100
127200
€ 115,90
price VAT included
-
+
Features
Rated Voltage
220...240 V
Constant Current
Current
250 mA
220-240 V = Output power
35 W
Current
350 mA
220-240 V = Output power
50 W
Current
400 mA
220-240 V = Output power
56 W
Current
450 mA
220-240 V = Output power
63 W
Current
500 mA
220-240 V = Output power
70 W
Current
550 mA
220-240 V = Output power
77 W
Current
600 mA
220-240 V = Output power
84 W
Current
700 mA
220-240 V = Output power
100 W
Dimming:
1-10V only
BILEVEL Function
SYNC/PWM INPUT
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
NOT SELV (>120V)
DIMMING: AM + PWM (MIXED) IEEE1789-2015
DIMMING: PWM
4/5 kV DM/CM SURGE Input Protection
4/8 kV DM/CM SURGE Input Protection
EXTERNAL NTC INPUT
Approvals:
KEMAKEUR
ENEC
CE
EAC
UKCA
Plastic case:
IP 20 (Independent Use)
Minimum cut-out hole diameter:
80 mm
Size:
240 x 40 x 60 mm
last update:
2/2/2021
Output voltage (min/max)
250 mA
10...140
350 mA
10...140
400 mA
10...140
450 mA
10...140
500 mA
10...140
550 mA
10...140
600 mA
10...140
700 mA
10...140
