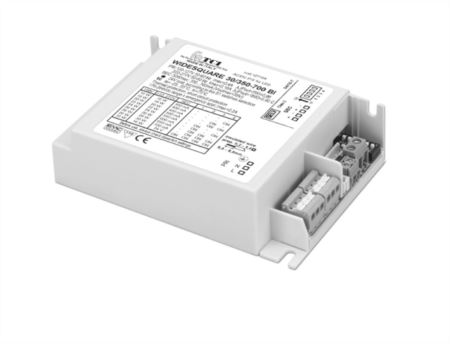

WIDESQUARE 30/350-700 BI
127164
€ 28,40
price VAT included
-
+
Features
Rated Voltage
100 V
110...127 V
220...240 V
277 V
Constant Current
Current
350 mA
220-240 V = Output power
16 W
110-127 V =
16 W
100 V =
16 W
Current
400 mA
220-240 V = Output power
18 W
110-127 V =
18 W
100 V =
18 W
Current
450 mA
220-240 V = Output power
20 W
110-127 V =
20 W
100 V =
20 W
Current
500 mA
220-240 V = Output power
22 W
110-127 V =
22 W
100 V =
22 W
Current
550 mA
220-240 V = Output power
24 W
110-127 V =
24 W
100 V =
24 W
Current
600 mA
220-240 V = Output power
26 W
110-127 V =
26 W
100 V =
26 W
Current
650 mA
220-240 V = Output power
28 W
110-127 V =
28 W
100 V =
26 W
Current
700 mA
220-240 V = Output power
30 W
110-127 V =
30 W
100 V =
26 W
Dimming:
NOT DIMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
WIDE RANGE INPUT VOLTAGE
4/5 kV DM/CM SURGE Input Protection
Approvals:
UL (class 2)
CE
EAC
UKCA
Plastic case:
Square
for Built-in
ZHAGA AM2
Size:
110 x 30 x 76 mm
last update:
6/5/2024
Output voltage (min/max)
350 mA
10...47
400 mA
10...47
450 mA
10...46
500 mA
10...46
550 mA
10...45
600 mA
10...45
650 mA
10...43
700 mA
10...43
